1 Switch chassis 3 Captive screw
2 Power supply and fan assembly 4 Label with part number
Complete the following steps to remove a combined power supply and fan
assembly from the switch.
1. To leave the switch in service while replacing a power supply and fan
assembly, verify that the other power supply and fan assembly (the one not
being replaced) has been powered on for at least four seconds and has a steady
green LED.
2. Power off the power supply to be replaced by pressing the AC power switch to
the O symbol. The fans in the other power supply will automatically switch to
high speed to maintain adequate cooling.
3. Unplug the power cord from the power supply and fan assembly that is being
replaced.
4. Using a Phillips-head screwdriver, unscrew the captive screw 3.
5. Remove the power supply and fan assembly 2 from the chassis by pulling
the handle out and away from the chassis 1.
6. Note the part number and airflow label 4 on the assembly just removed.
Replacing a power supply and fan assembly
Refer to Figure 15 for this procedure.
Complete the following steps to replace a combined power supply and fan
assembly in the switch
1
3
4
2
b48f011

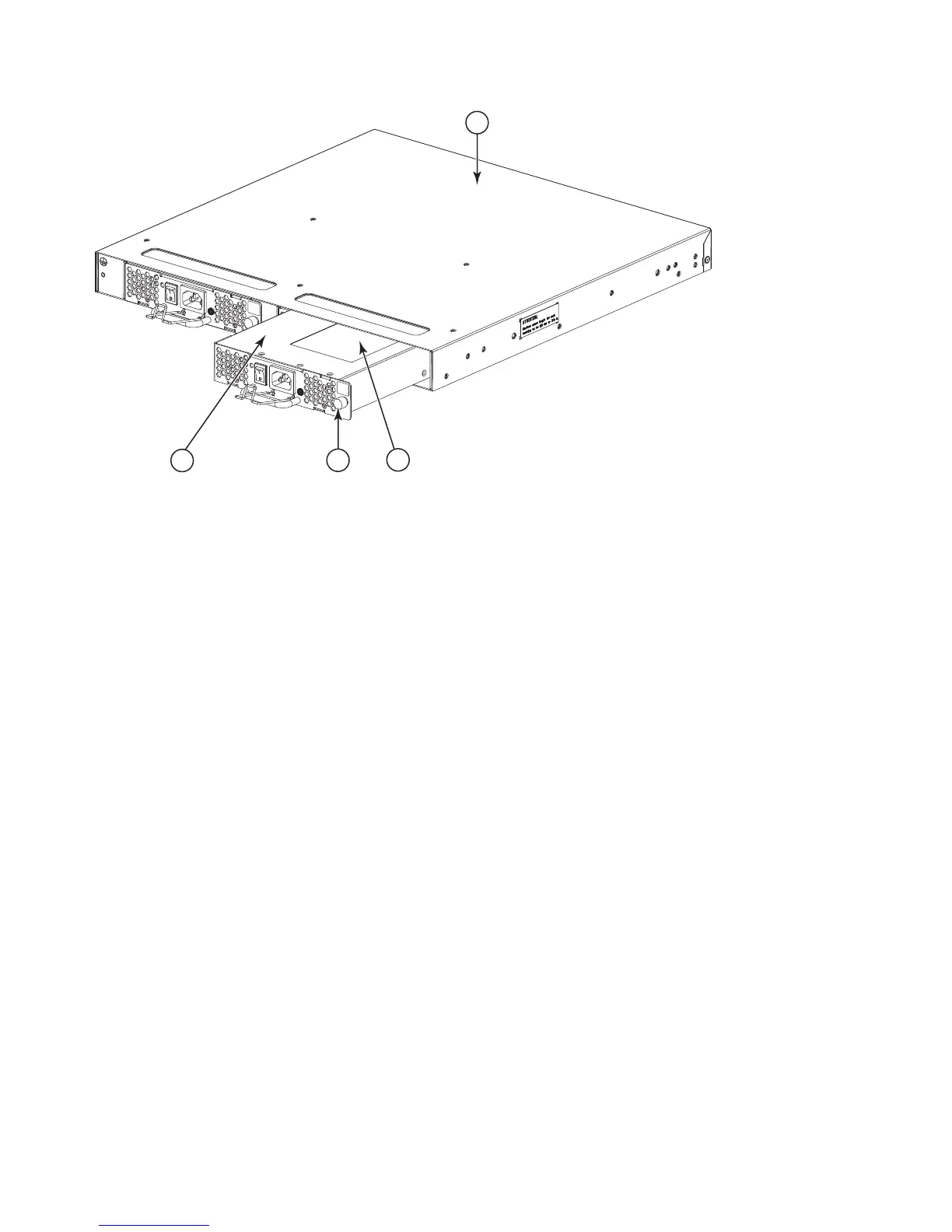

Figure 15. Removing the power supply and fan assembly
32 SAN48B-5 Installation, Service, and User Guide
