Appendix G. Patch Panel Planning Form

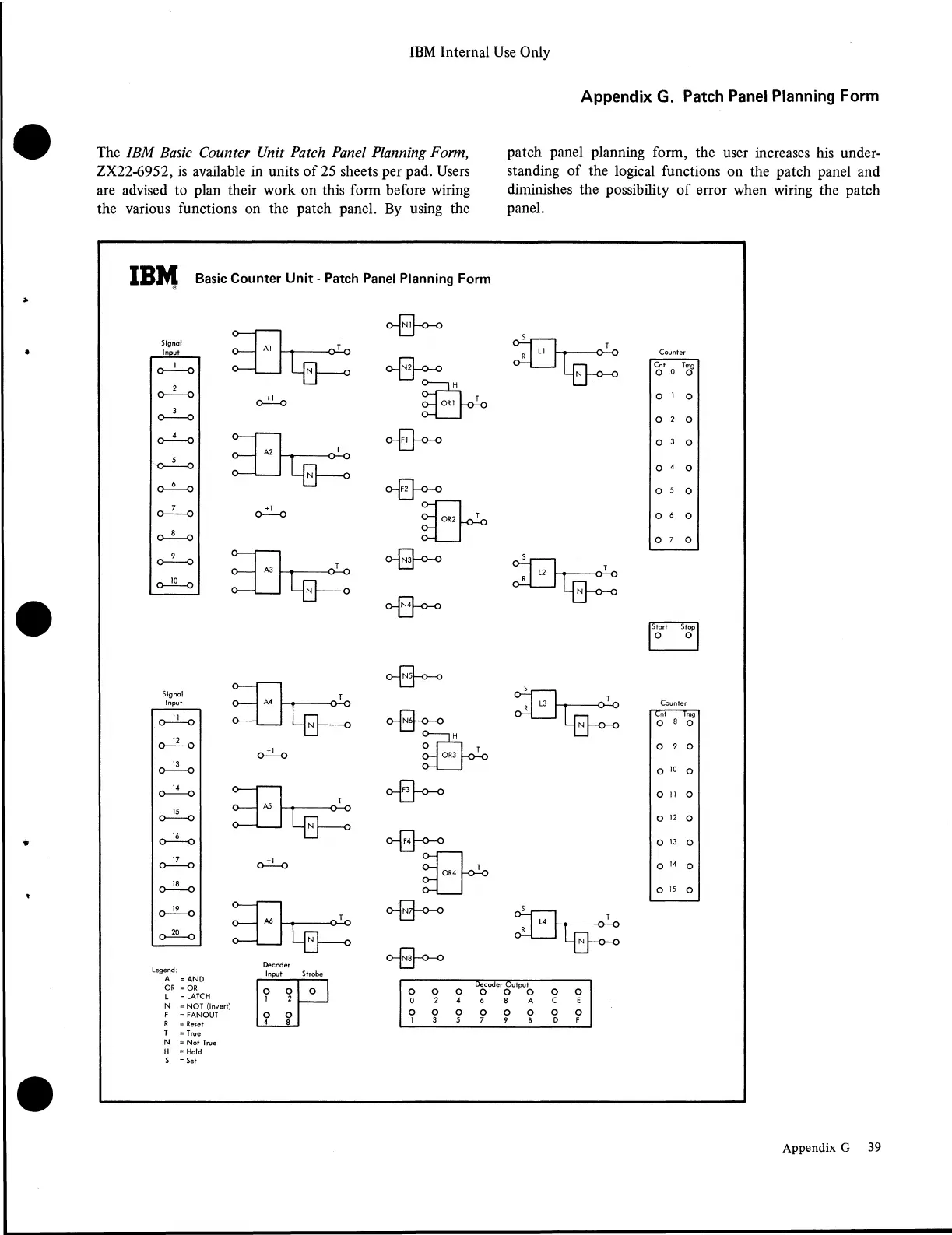

The IBM Basic Counter Unit Patch Panel Planning Form,
ZX22-6952, is available in units of 25 sheets per pad. Users
are advised to plan their work on this form before wiring
the various functions on the patch panel. By using the
patch panel planning form, the user increases his under
standing of the logical functions on the patch panel and
diminishes the possibility of error when wiring the patch
panel.
IBM Basic Counter Unit - Patch Panel Planning Form
T = True
N = Not True
H = Hold
S = Set
Appendix G 39
