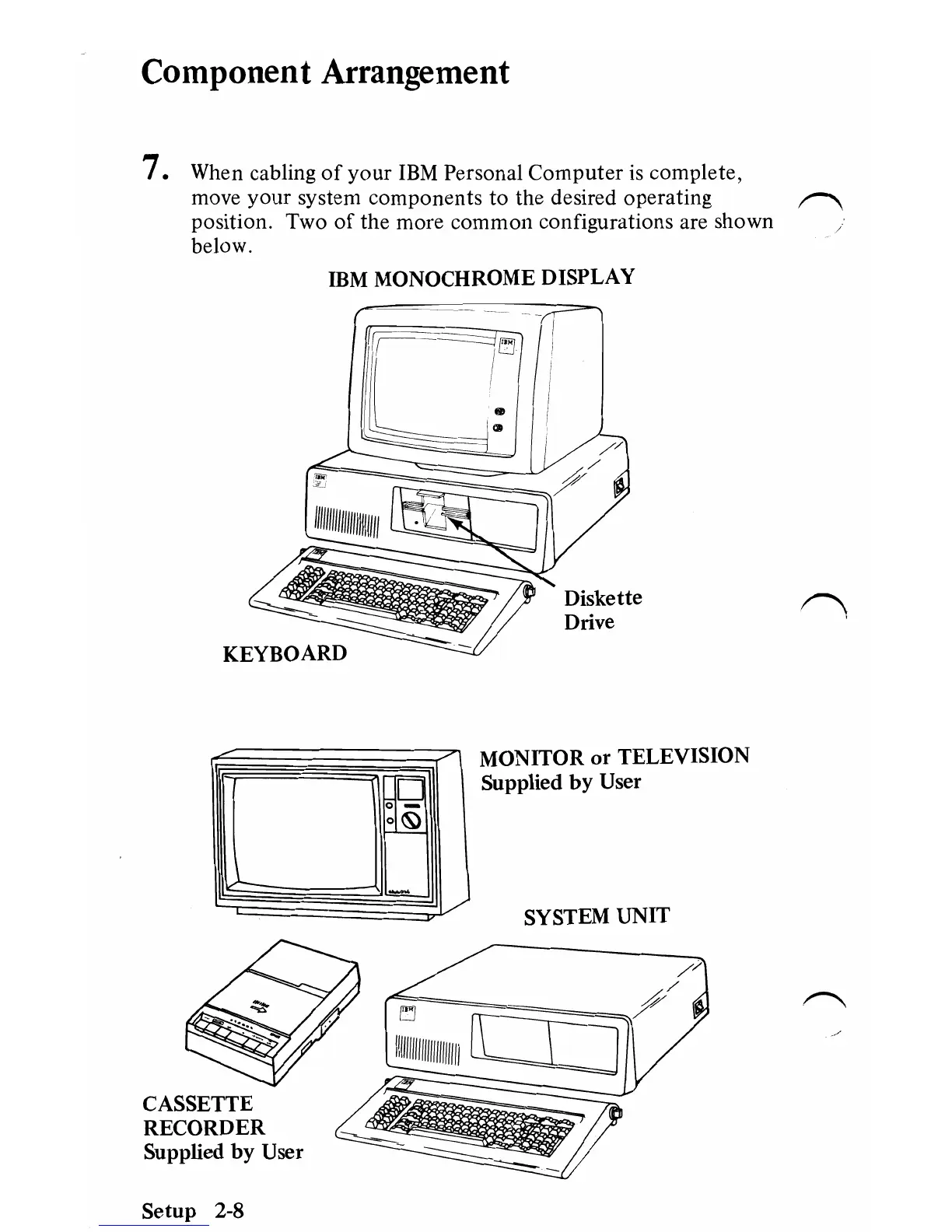

Component
Arrangement
7. When cabling
of
your
IBM
Personal Computer is complete,
move
your
system components
to
the desired operating
/""""".,
position. Two
of
the more common configurations are shown
below.
mM
MONOCHROME DISPLAY
-=---=:j
(ffiI]
!LJ
KEYBOARD
MONITOR or TELEVISION
Supplied
by
User
SYSTEM UNIT
CASSETTE
RECORDER
Supplied
by
User
Setup
2-8
