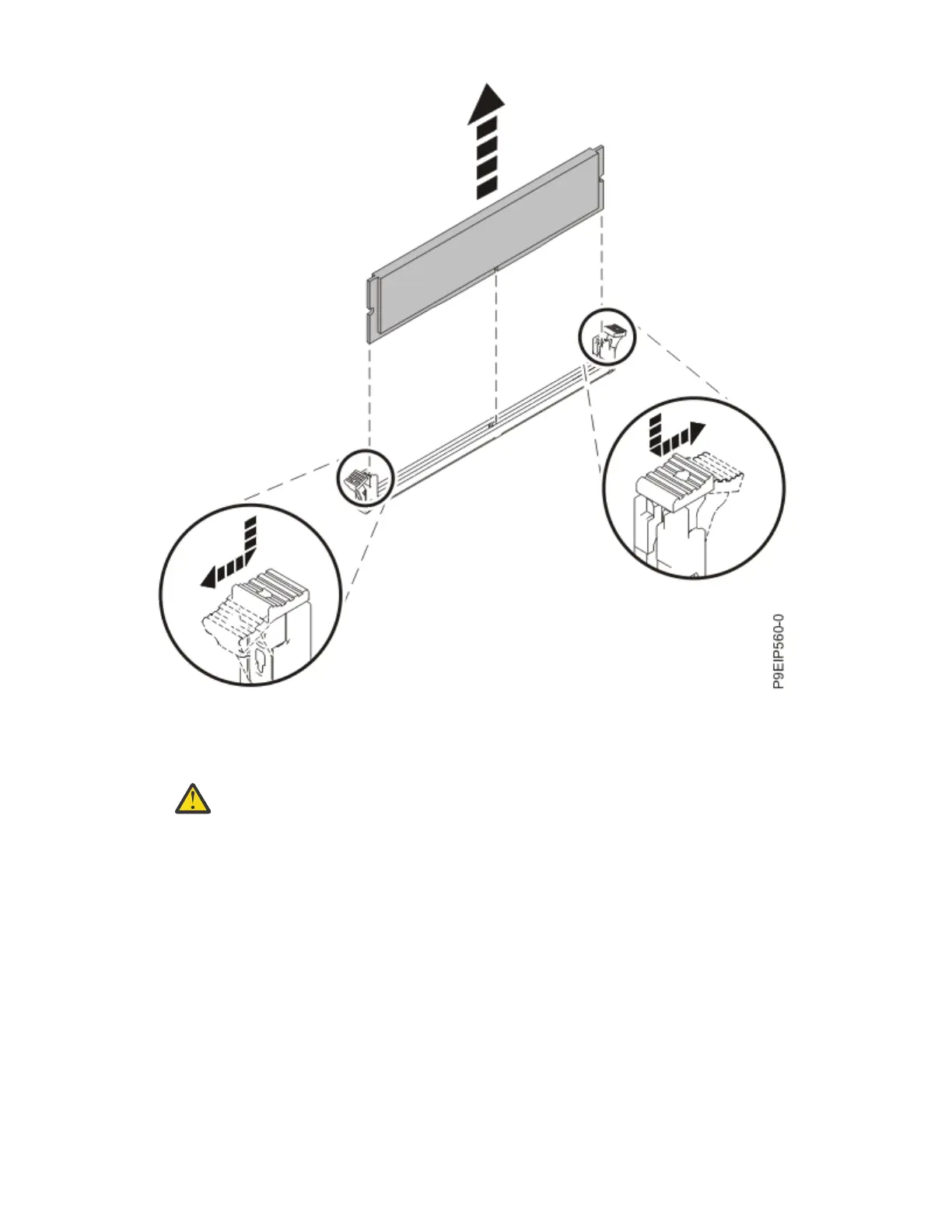

Figure 23. Removing the memory DIMM
5. Insert the memory DIMM.
a) Grasp the memory DIMM along its edges and align it with the slot on the system backplane.
Attention:
Memory is keyed to prevent it from being installed incorrectly. Note the location
of the key tab within the memory connector before you attempt to install it.
b) Press rmly on each side of the memory DIMM until the locking tab locks in place with an audible
click.
24
Power Systems: Servicing the IBM Power Systems HMC (7063-CR2)

IBM 7063-CR2 Specifications

General

Category	Network Hardware
Model	7063-CR2
Type	Switch
Form Factor	1U
Weight	8.2 kg (18.1 lbs)
