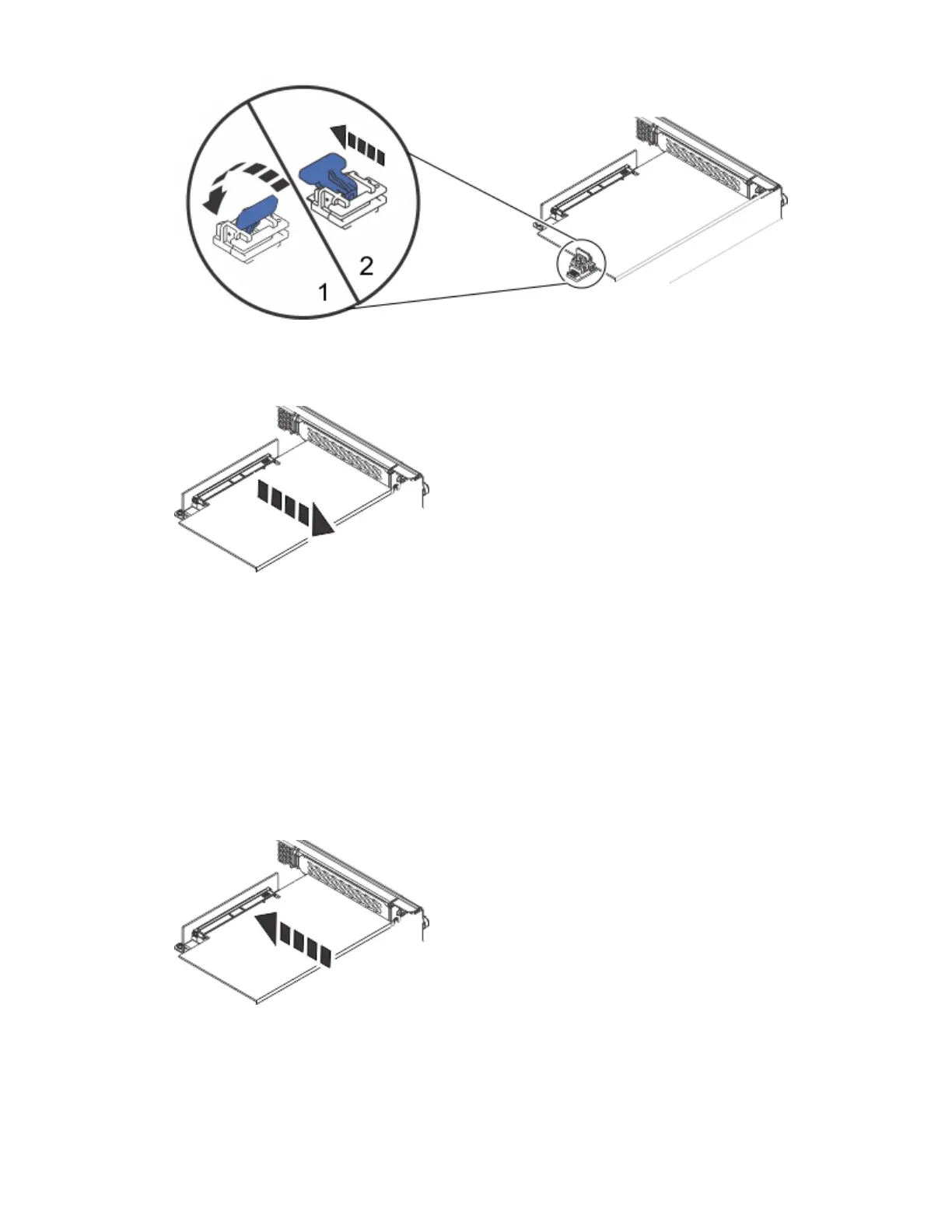

Figure 40. Removing the PCIe adapter retaining latch
c) Move the retainer clip away from the PCIe adapter.
d) Remove the PCIe adapter from the PCIe riser.
Figure 41. Removing the PCIe adapter
Replacing a PCIe adapter in the 7063-CR2 system
To replace a PCIe adapter in the IBM Power Systems HMC (7063-CR2) system, complete the steps in this
procedure.
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Replace the PCIe adapter.
a) Replace the PCIe adapter into the PCIe riser.
Figure 42. Replacing the PCIe adapter
b) Replace the screw that secures the PCIe adapter to the system backplane.
Removing and replacing parts in the 7063-CR2
35
