4. Turn the system upside down on the ESD surface.

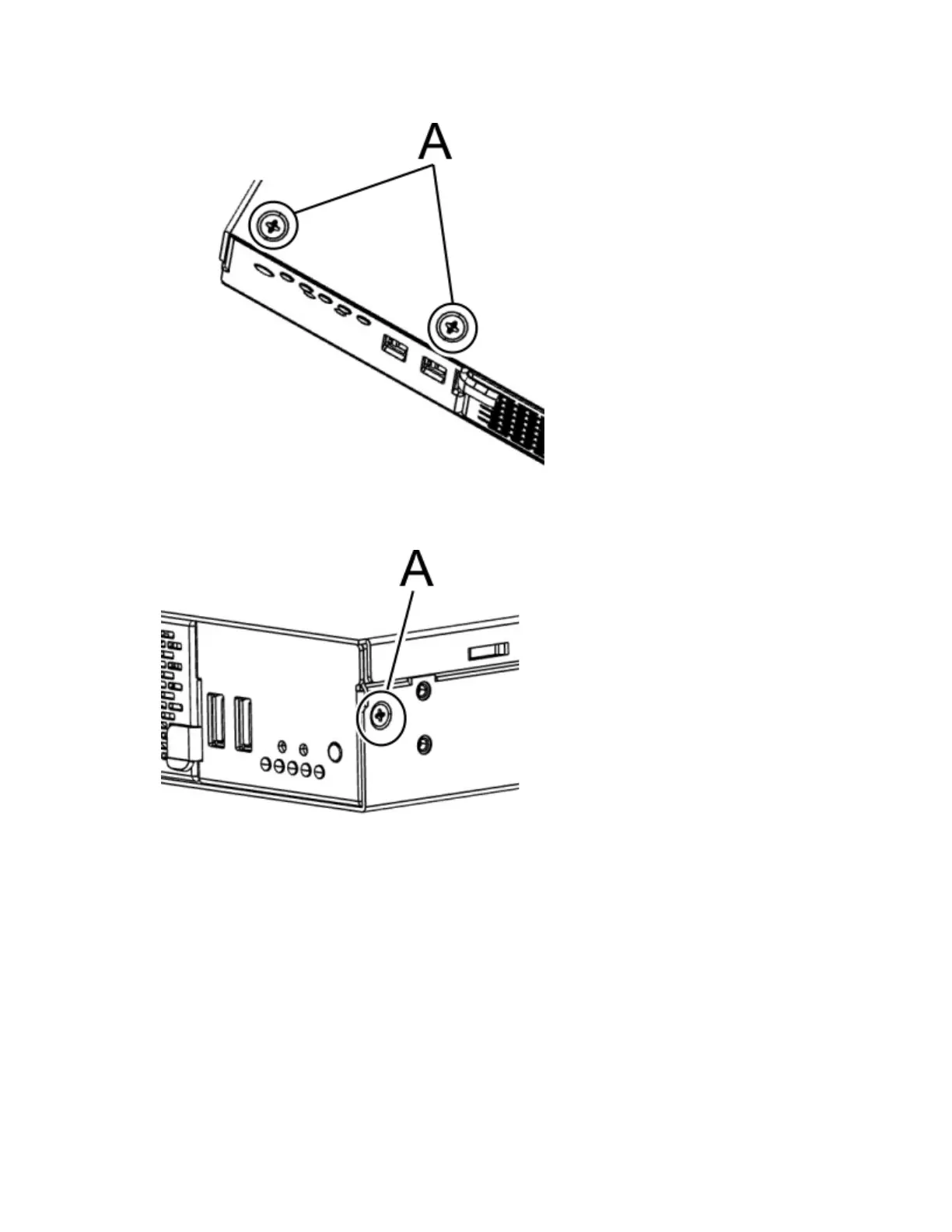

5. Remove the two screws (A) that secure the control panel to the bottom of the system.
Figure 26. Removing the control panel bottom screws
6. Turn the system right side up on the ESD surface.
7. Remove the screw (A) that secures the control panel to the right side of the system.
Figure 27. Removing the control panel side screw
8. Remove the fan cover from the front of the system.
a) Rotate the two levers (A) on each side of the fan cover up and out to unlock the fan cover.
b) Pull the cover away from the system.
Removing and replacing parts in the 7063-CR2
27
