IBM 7063-CR2 - Page 57

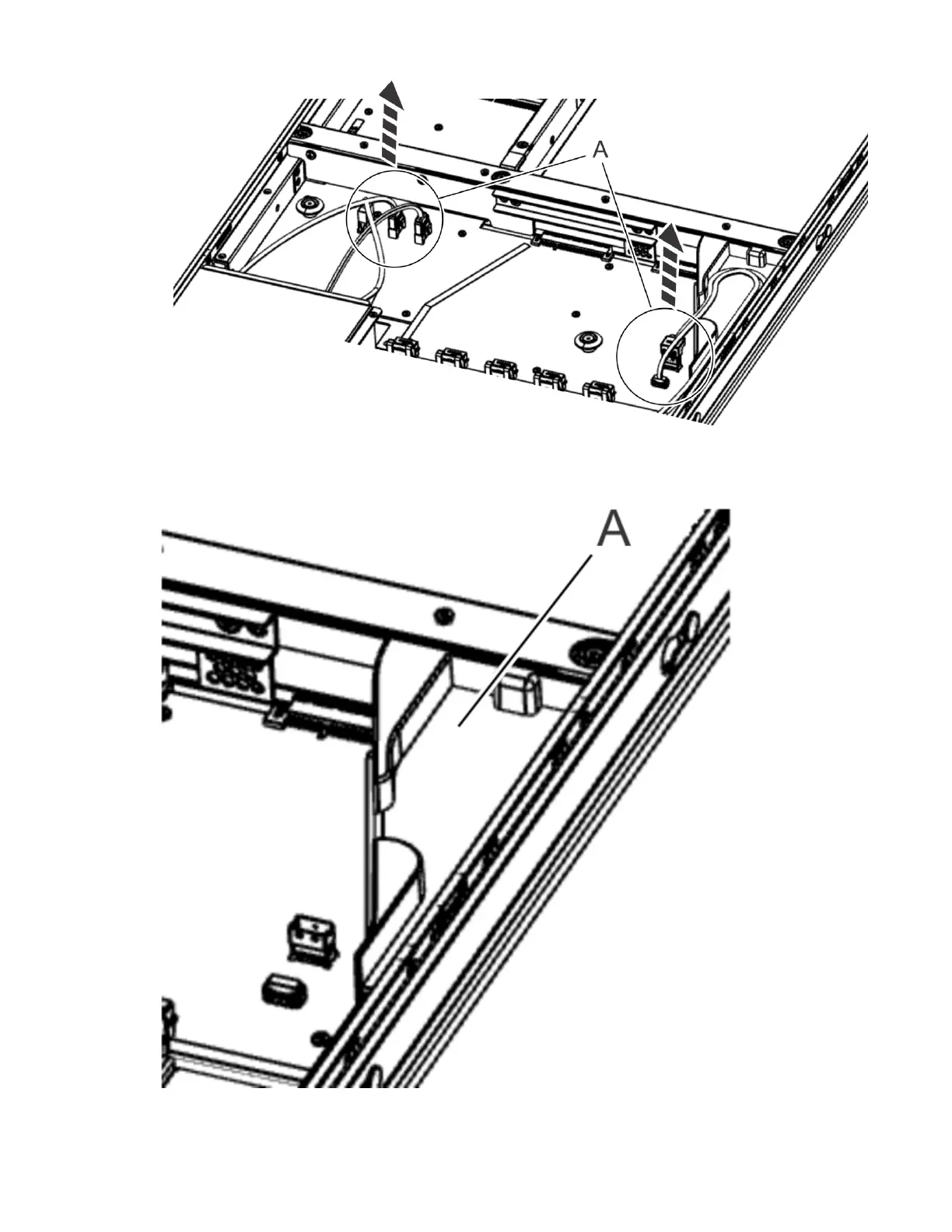

Figure 55. Removing cables from the power distribution board
8. Remove the right plastic air baffle (A) from the right edge of the system; lift it straight up.
Figure 56. Right air baffle
9. Remove the cross bar from inside the system.
Removing and replacing parts in the 7063-CR2
43
