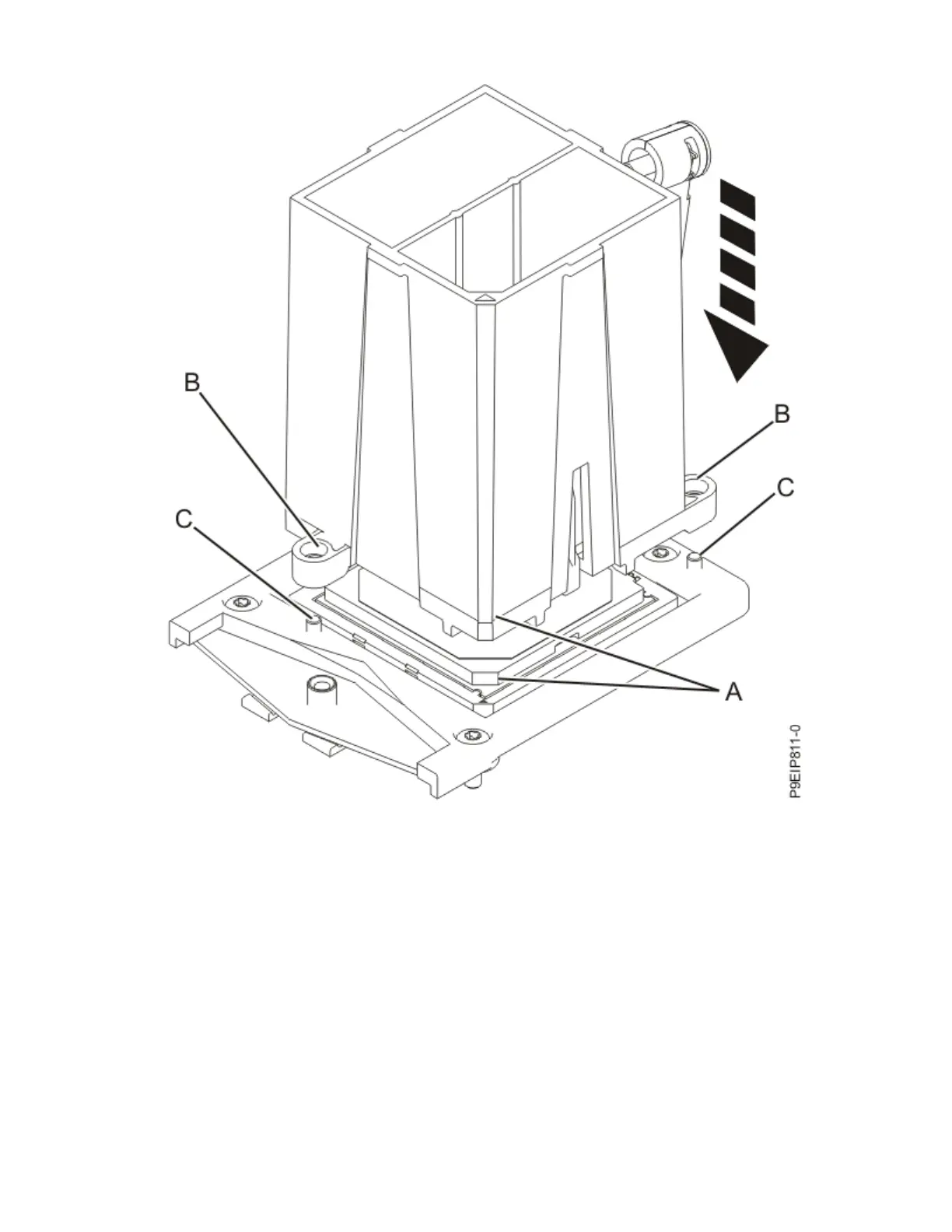

Figure 102. Installing the system processor module
7. After the tool and system processor module holes and guide pins are properly aligned, squeeze and
hold the two blue release tabs (A) together until a rm stop is reached as shown in the following
gure.
Then, lift the tool off the system processor module.
80
Power Systems: Servicing the IBM Power Systems HMC (7063-CR2)
