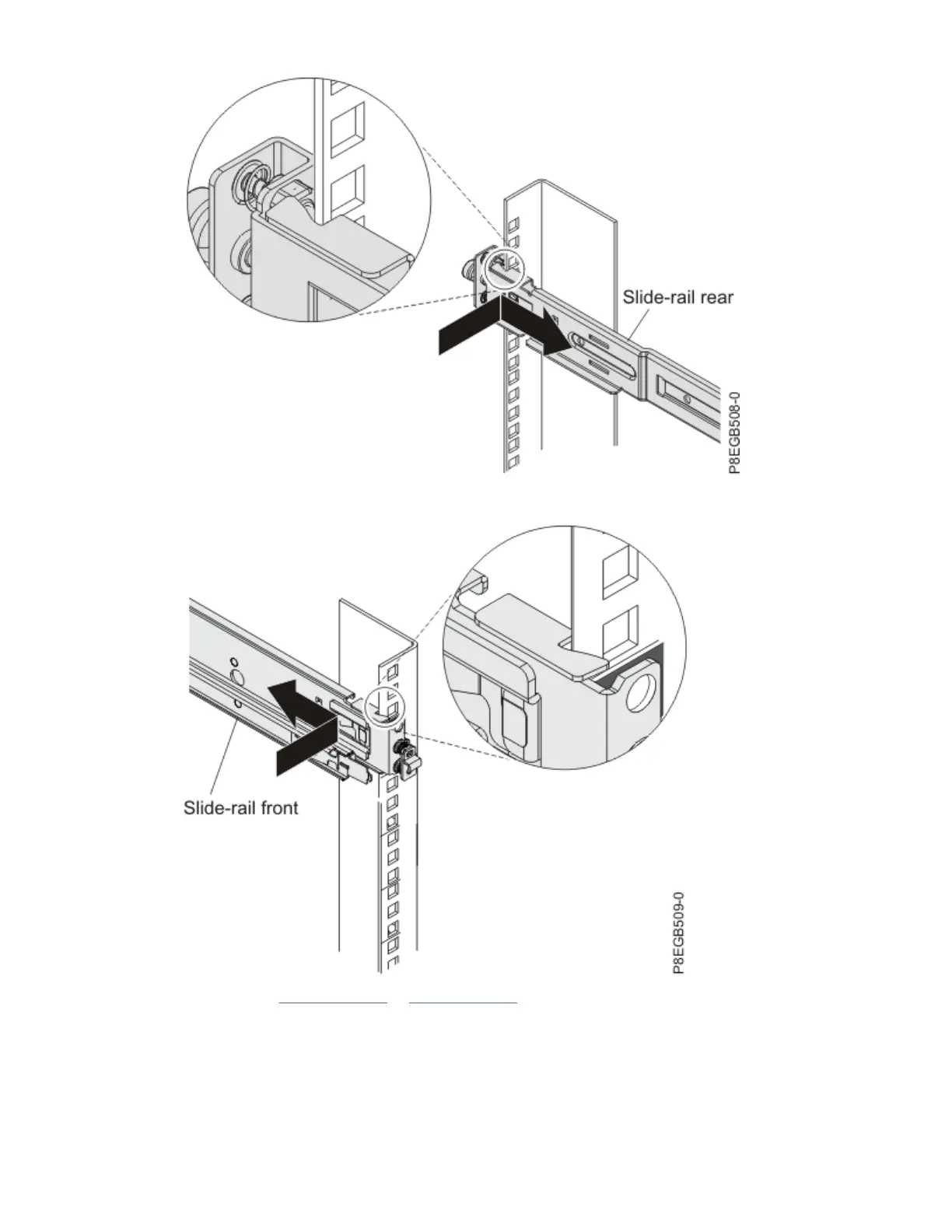

c. Extend the slide-rail and press the front slide-rail bracket towards the rack flange and then push it
towards the rear of the rack until the locking bracket clicks into place behind the rack flange.
d. Repeat steps “5.a” on page 7 to “5.c” on page 8 to attach the other outer slide-rail.
Note: Make sure that the two pins in the slide-rail brackets are pressed completely into the rack
holes and that the bracket is flush with the rack flange. You might have to move the slide-rail up
and down several times, and press on the end of the bracket to release the pins so that they are
correctly in the holes in the rack flange.
8
Power Systems: Installing the 7316-TF4 18.5-Inch and 7316-TF5 17.3-Inch Flat Panel Rack-Mounted
Monitor and Keyboard
