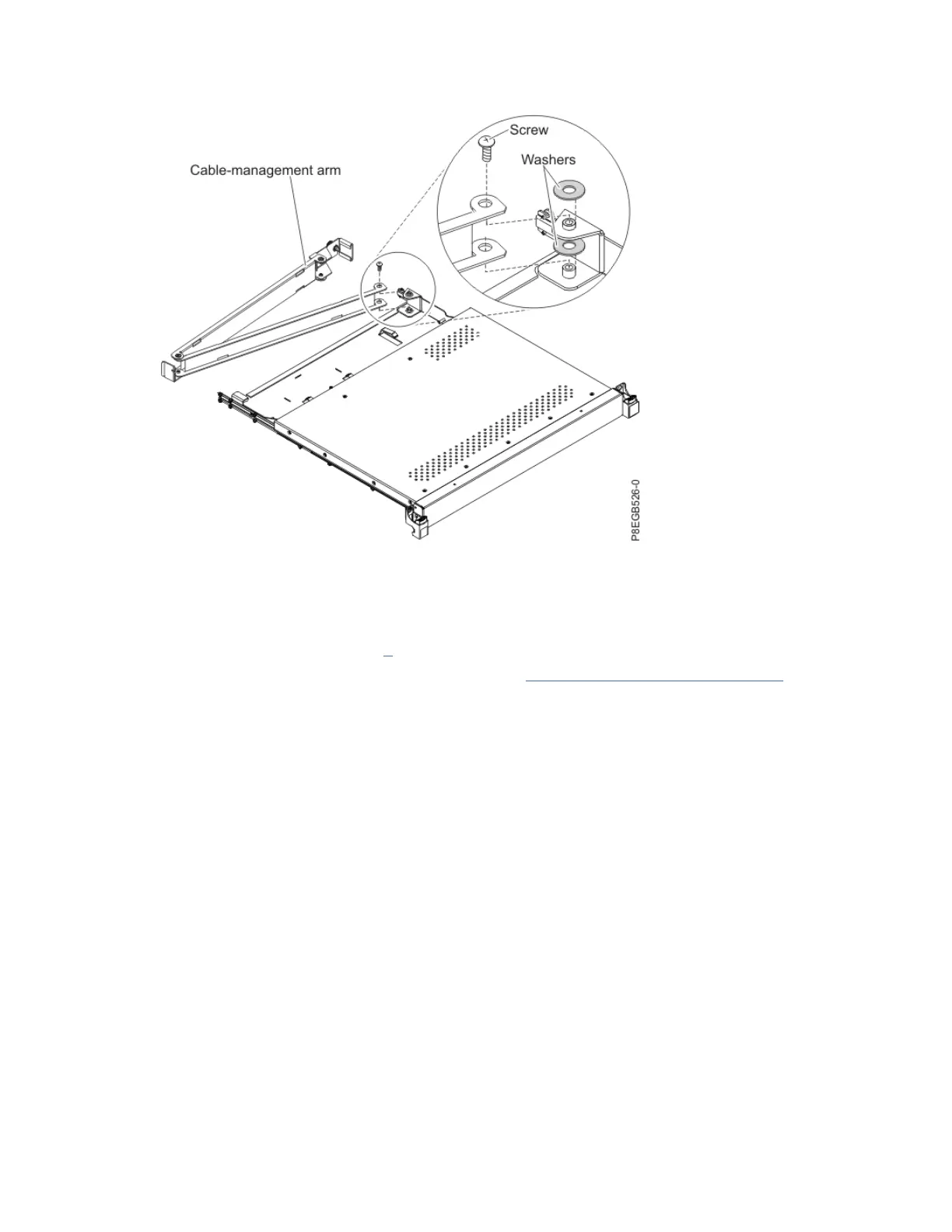

5. Remove the screw that attaches the front cable-management arm bracket to the console unit and
then, remove the cable-management arm.
6. Unpack the replacement cable-management arm.
7. Remove the two washers on the cable-management arm bracket and replace them with the new
washers that come with the replacement cable-management arm.
8. Align the screw holes in the new cable-management arm with the bracket and secure it with the
screw that you removed in step 5.
9. If you removed the console unit from the rack, go to Installing the console unit in the rack to
complete the procedure.
10. Route the cables that you removed in step 2 along the new cable-management arm and secure them
along the way with the hook-and-loop fastener strips.
11. Align the C-channel on the end of the cable-management arm with the bracket on the console unit.
Slide the C-channel onto the bracket until the cable-management arm thumbscrew aligns with the
hole in the bracket. Tighten the thumbscrew.
36
Power Systems: Installing the 7316-TF4 18.5-Inch and 7316-TF5 17.3-Inch Flat Panel Rack-Mounted
Monitor and Keyboard
