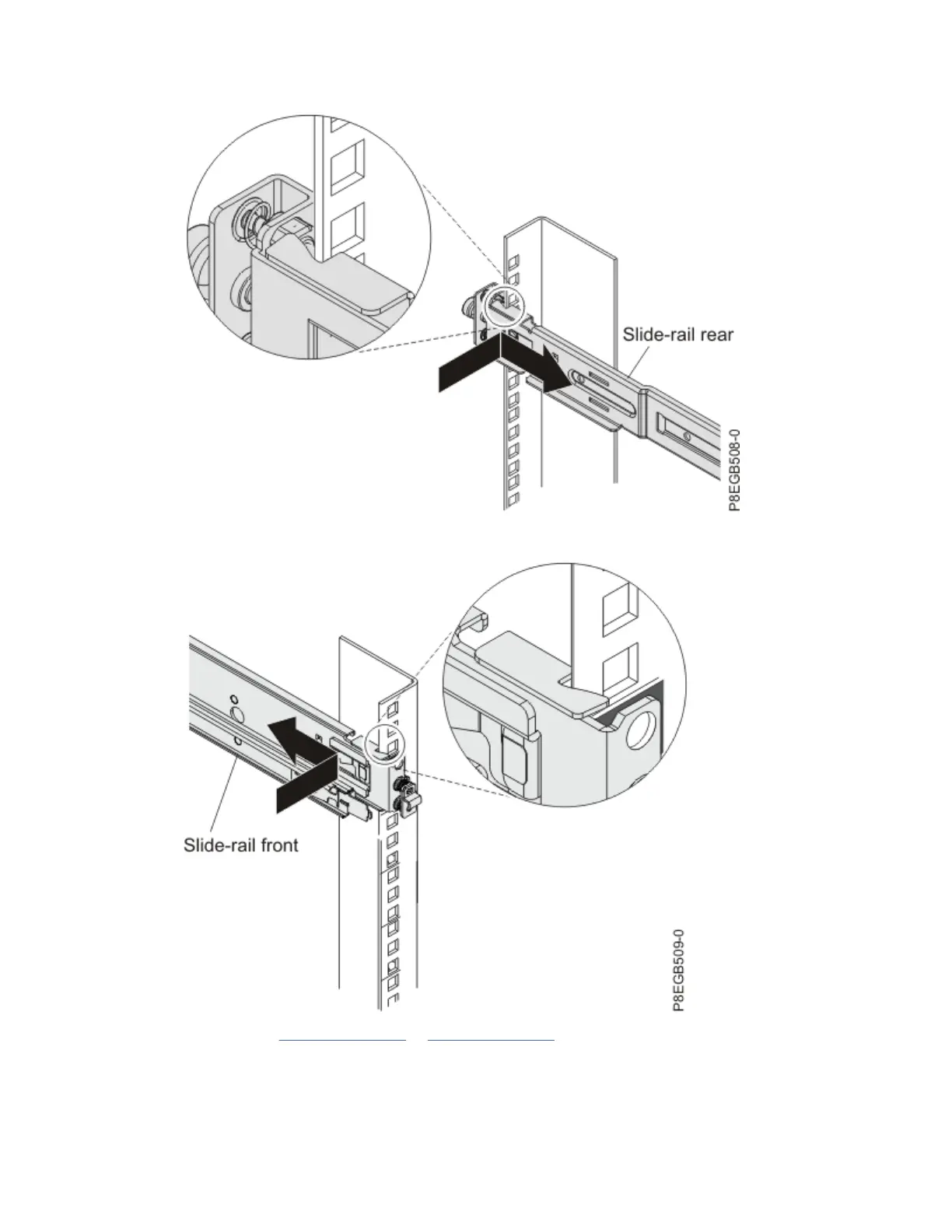

b. Press the rear slide-rail bracket toward the rack flange and then pull it towards the front of the
rack until the locking bracket clicks into place behind the rack flange.
c. Extend the slide-rail and press the front slide-rail bracket toward the rack flange and then push it
towards the rear of the rack until the locking bracket clicks into place behind the rack flange.
d. Repeat steps “10.a” on page 42 to “10.c” on page 43 to attach the other outer slide-rail.
11. Use a #1 Phillips screwdriver to remove the four screws that attach each inner slide-rail to the
console unit. Then, attach the corresponding new inner slide-rails to the unit, using the same
hardware. Make sure that you orient the inner slide rails correctly (see the illustration).
Installing the 7316-TF4 18.5-Inch Flat Panel Rack-Mounted monitor and keyboard
