a. Make sure that both retaining clips on the DIMM connector into which you
are installing the DIMM are in the open position (standing straight up).
b. Turn the DIMM so that the DIMM keys align correctly with the DIMM
connector on the system board.
Attention: To avoid breaking the retaining clips or damaging the DIMM
connector, handle the clips gently.
c. Press the DIMM into the DIMM connector. The retaining clips lock the
DIMM into the connector.
d. Make sure that the small tabs on the retaining clips are in the notches on
the DIMM. If there is a gap between the DIMM and the retaining clips, the
DIMM has not been correctly installed. Press the DIMM firmly into the
connector, and then press the retaining clips toward the DIMM until the
tabs are fully seated. When the DIMM is correctly installed, the retaining
clips are parallel to the sides of the DIMM.
Removing a DIMM - IBM MAX5
Use this information to remove a dual inline memory module (DIMM) from the
IBM MAX5 expansion blade.

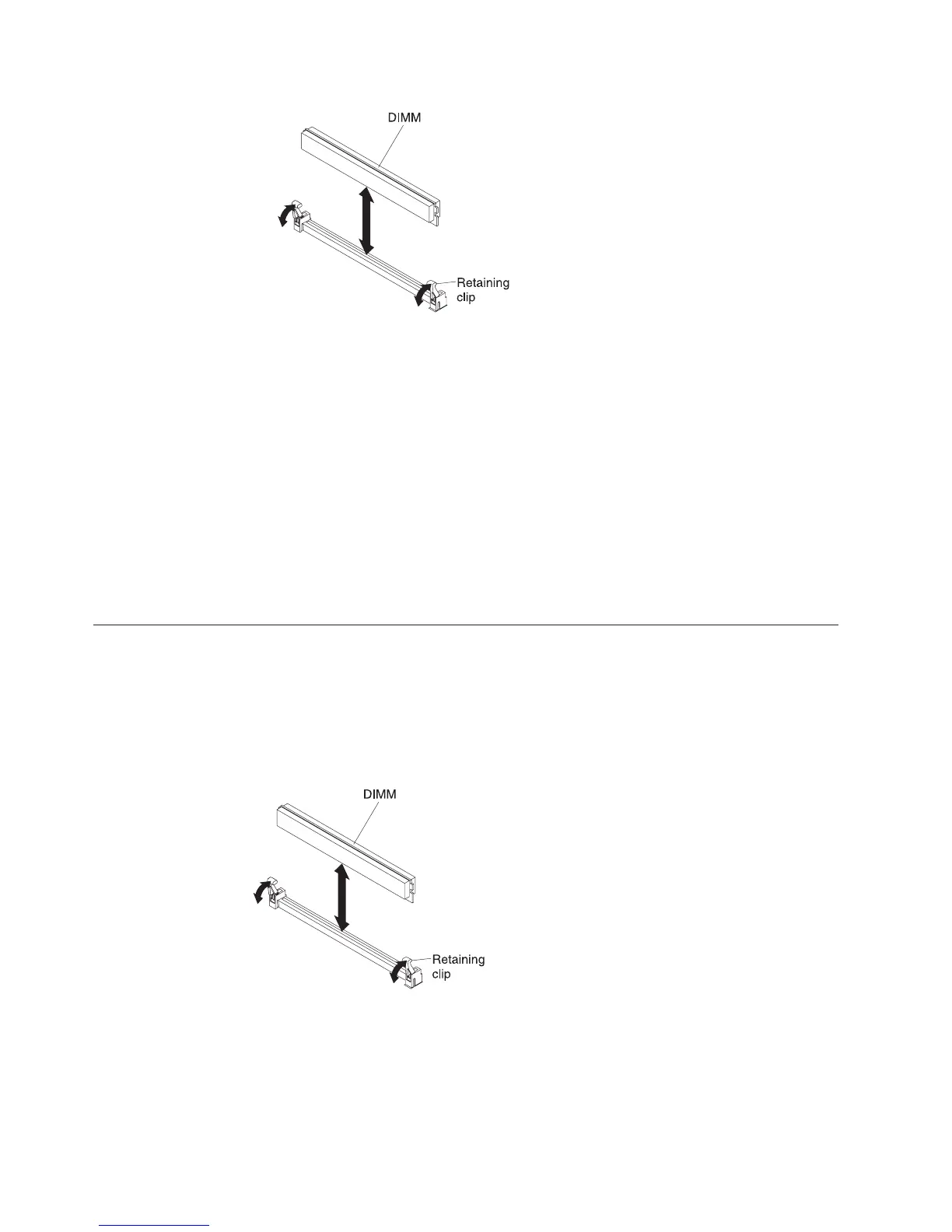

The following illustration shows how to remove a DIMM from the expansion
blade.
To remove a DIMM, complete the following steps:
1. Before you begin, read “Safety” on page v and “Installation guidelines” on
page 23.
2. Carefully lay the expansion blade on a flat, static-protective surface.
3. Open the expansion blade cover (see “Removing the blade server cover” on
page 25 for instructions).
36 IBM BladeCenter HX5 Type 7873, 7872, 1910, and 1909: Installation and User's Guide
