Expansion
card
To remove a CIOv expansion card, complete the following steps:
1. Before you begin, read “Safety” on page v and “Installation guidelines” on
page 23.
2. Remove the CFFh expansion card, if one is installed (see “Removing a CFFh
expansion card” on page 49 for instructions).
3. Locate the CIOv expansion connector (see “Blade server connectors -
BladeCenter HX5” on page 21).
4. Using your fingers, move the retaining clips away from the CIOv card; then, lift
the card out of the connector.
Installing a microprocessor and heat sink
Use this information to install a microprocessor and heat sink in the blade server.
Note: The optional microprocessors that IBM supports are limited by the capacity
and capability of the server. Any microprocessors that you install must have the
same specifications as the microprocessors that came with the blade server.

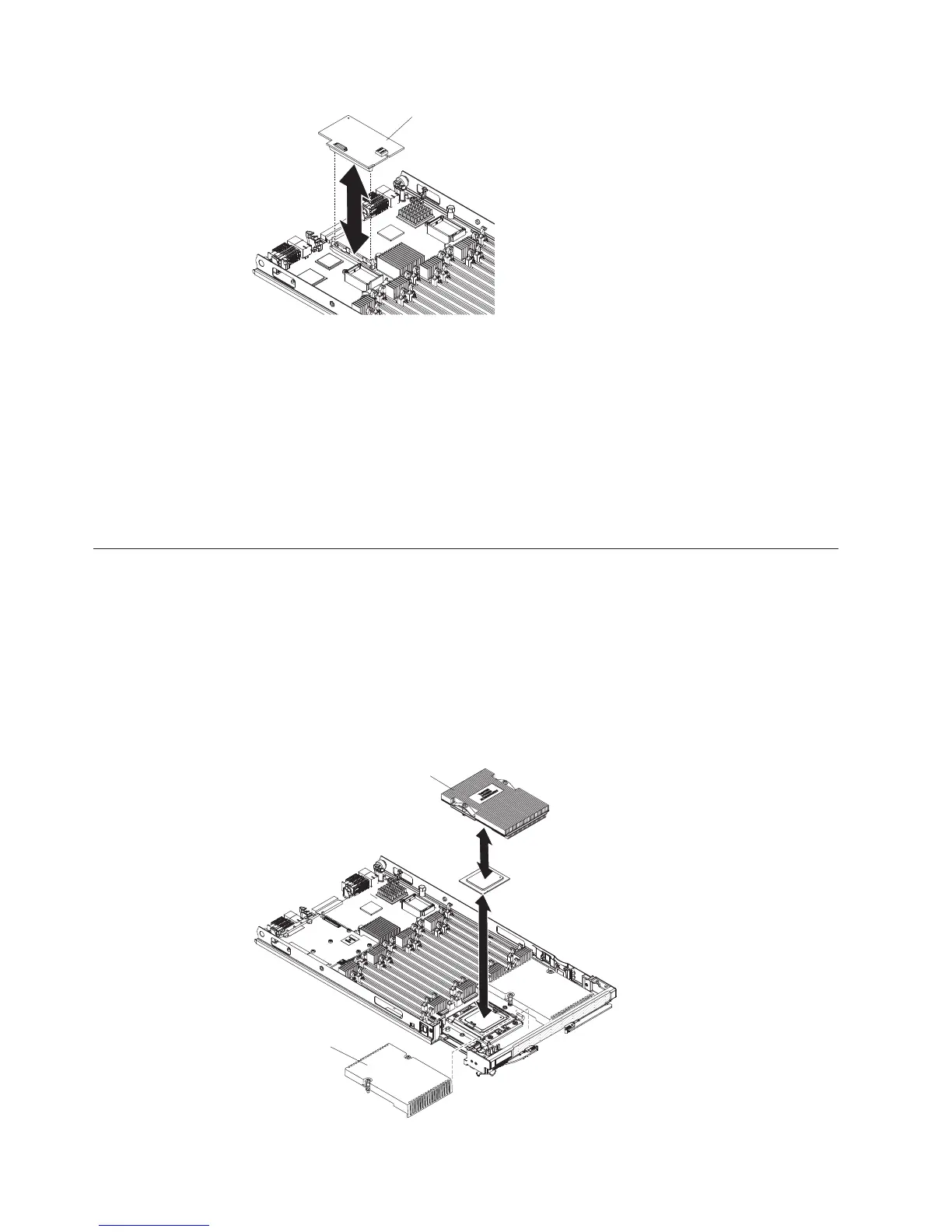

The following illustration shows how to install a microprocessor and heat sink in
the blade server.
Heat sink
Microprocessor
heat sink filler
50 IBM BladeCenter HX5 Type 7873, 7872, 1910, and 1909: Installation and User's Guide
