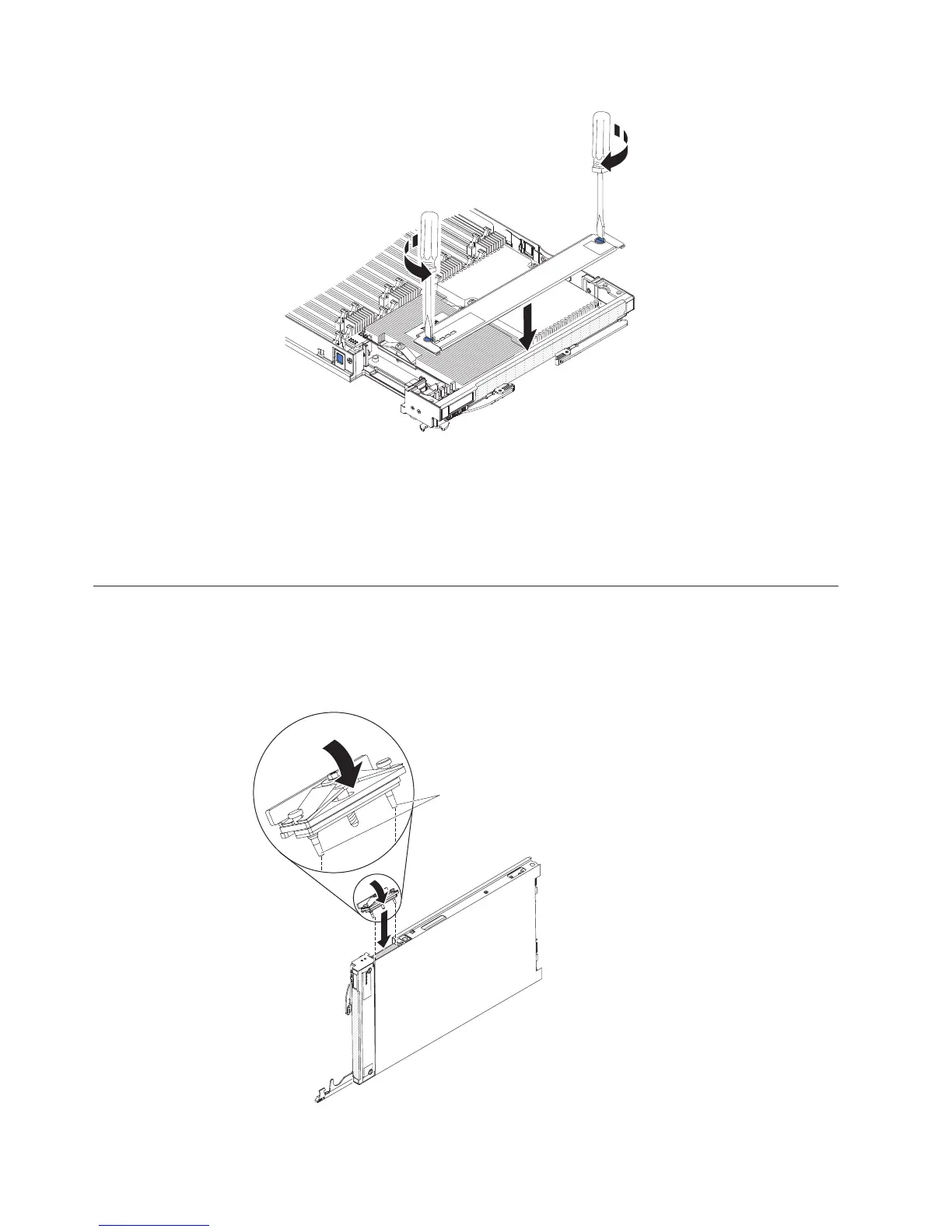

a. Make sure that the screws on the access panel are in the open position (the
screw insert is parallel to the side of the access panel).
b. Slide the back of the cover under the blade server bezel, aligning the
screws with the slots on the blade server.
c. Using a screwdriver or a coin, turn each of the screws away from the
middle of the blade server until it is in the locked position.
Installing the 1-node speed burst card
Use this information to install a 1-node speed burst card in a blade server.
To install a 1-node speed burst card, complete the following steps:
Alignment
pins
56 IBM BladeCenter HX5 Type 7873, 7872, 1910, and 1909: Installation and User's Guide
