IBM Elastic Storage System 3200 User Manual

PCIe 11
PCIe 12
PCIe 21
PCIe 22
P1 P2 P2 P1 P1 P2 P2 P1
Power
Module A/1
Server
Canister A/1
USB Mini-B Console Port
USB 3.1 Gen 1 type A Port
1 GbE RJ45 Port
Mini Display Port
Power
CPU Reset
Power
CPU Reset
USB Mini-B Console Port
USB 3.1 Gen 1 type A Port
1 GbE RJ45 Port
Power
Module B/2
Server
Canister B/2
Mini Display Port

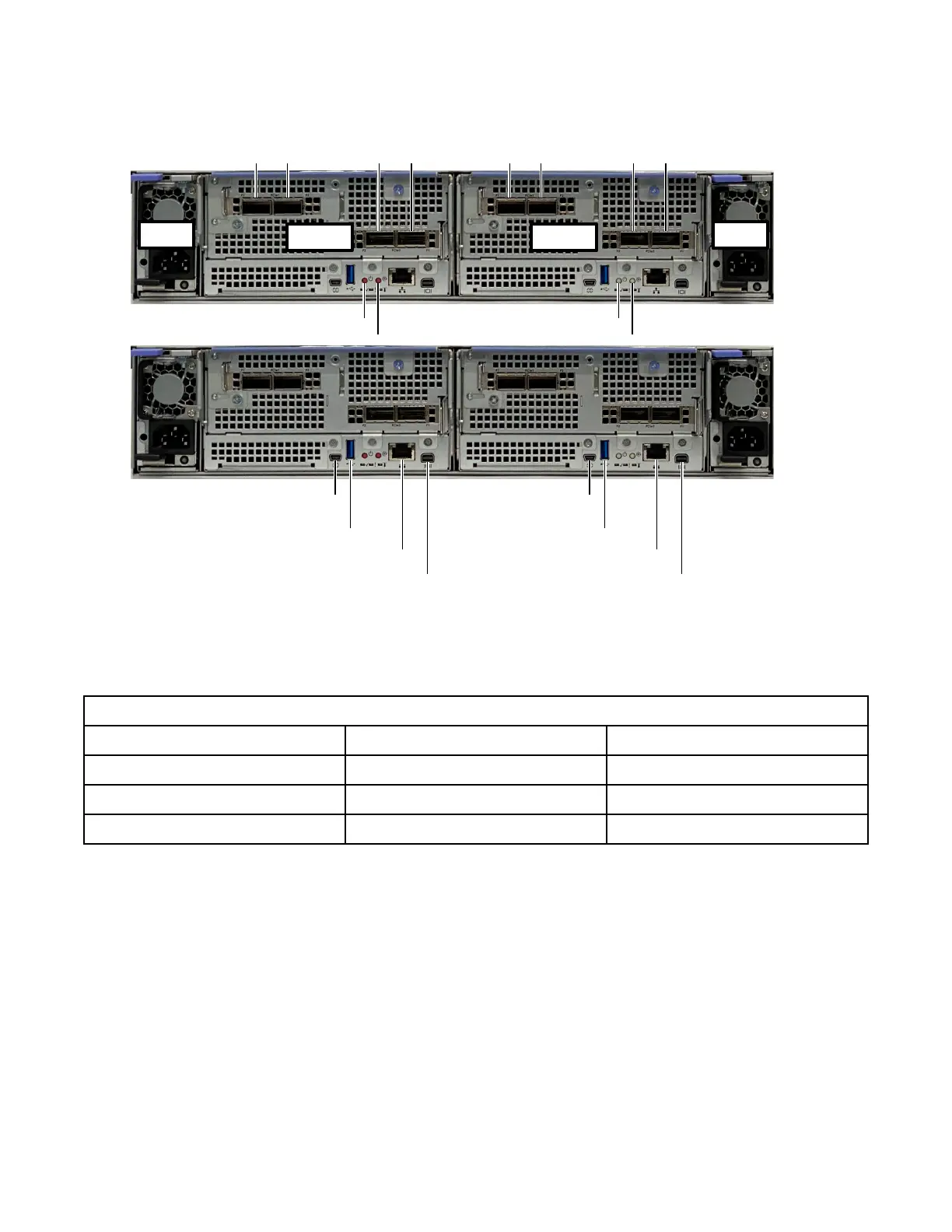

Figure 17. Orientation of ports on IBM Elastic Storage System 3200
The Ethernet port on each server canister provides system management and BMC connections. The
onboard 1 Gbps Ethernet port use RJ-45 connection. A separate technician port provides access to each
I/O server canister for hardware check and setup. The following table describes each port.
Table 19. Summary of onboard ports
Onboard Port Speed Function
1 GbE RJ45 Port 1 Gbps Function Management IP and BMC
USB 3.1 Gen 1 type A Port N/A Keyboard
Mini Display Port N/A Connection for console video
42IBM Elastic Storage System 3200: Hardware Planning and Installation Guide

IBM Elastic Storage System 3200 Specifications

General

Model	IBM Elastic Storage System 3200
Form Factor	2U
Operating System	IBM Spectrum Scale
Power Supply	Dual redundant power supplies
Drive Types	SSD
Processors	Intel Xeon processors
Network Interfaces	10 GbE, 25 GbE
Protocols Supported	NFS, SMB, S3
Data Protection	Snapshots, Replication
Management	IBM Spectrum Control
