Appendix A. Planning worksheets (customer task)
Customers are responsible for completing the system planning worksheets.
The customer then provides the worksheets to the IBM SSR when they install and congure the system.
Installation worksheet
This worksheet is intended for customers as part of the TDA process to outline the items that are required
to be implemented by the SSR during setup.
Important: Click here to download the blank worksheet.
Customer task
Customer lls out the desired IP addresses.
SSR task
The SSR uses this information to properly set the desired IP addresses on each canister and the EMS (if
applicable).
Note: The management IP addresses must be on the same subnet as the EMS bridge interface. If you
already have an existing EMS, set IP addresses on the same subnet (all must be reachable).
Note: This document does not describe about the high-speed network. Customers must have that
in place and ready to ll in (or update) the /etc/hosts le on the EMS node during the software
installation. For reference, see Chapter 4, “Installing,” on page 45 and IBM Elastic Storage System 3200
Quick Deployment Guide. The high-speed interfaces are on a separate switch and must be dened on a
different subnet.
For instance, if your management interfaces are all 192.168.21.X/24, your high-speed hosts should be
any other network. For instance, 172.16.0.0/24. You should use /24 (255.255.255.0), if possible.
Prerequisite (for SSR)
You must be connected to the SSR access port of the target canister (left or right). See the “Completing
the ESS 3200 installation at the customer site (SSR task)” on page 64 for steps required to check the
hardware and set the desired IP addresses that are outlined in this worksheet by the customer.

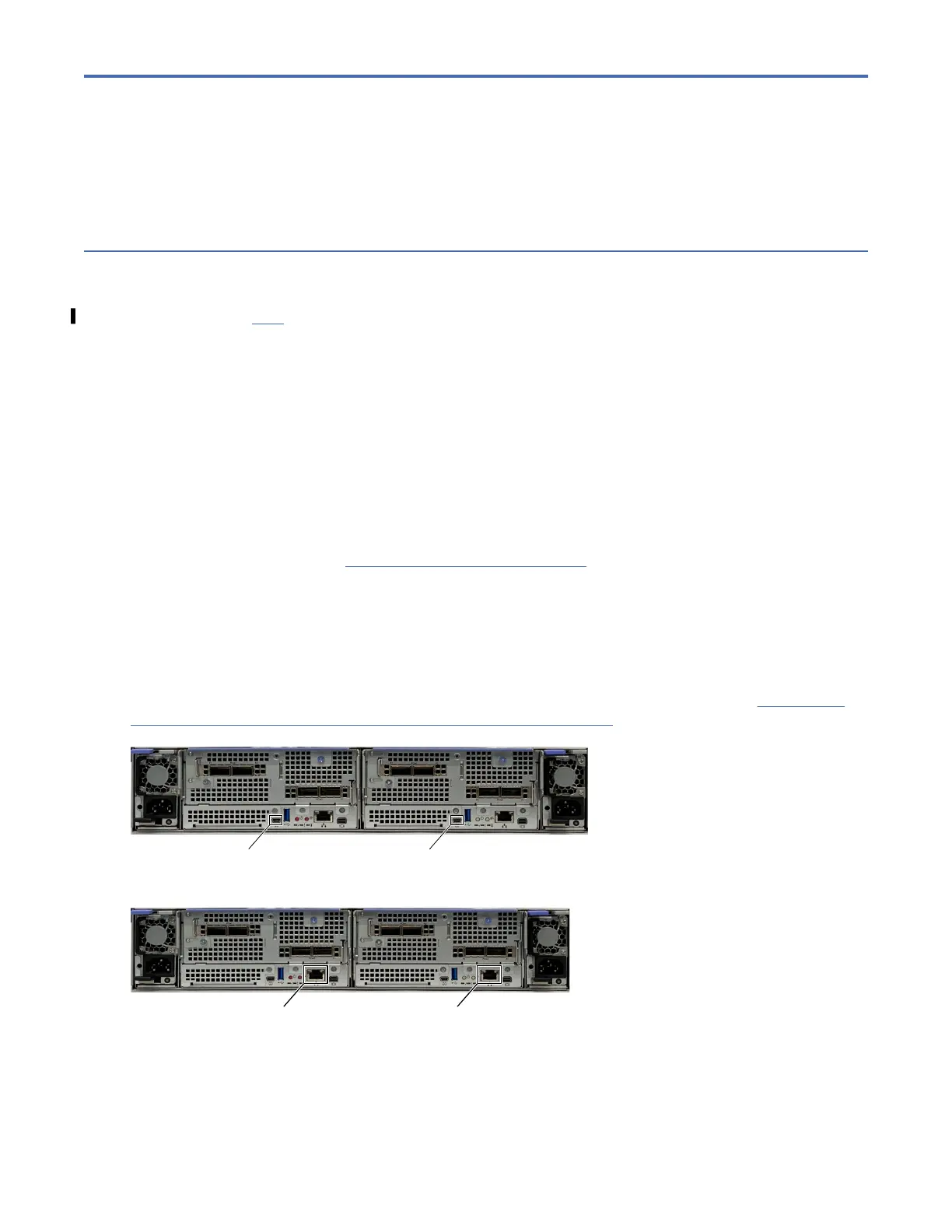

SSR access port
SSR access port
Figure 83. SSR access port
Management port
Management port
Figure 84. Management ports of each canister
The following gure shows the EMS server P2P cabling.
©
Copyright IBM Corp. 2021, 2022 101
