A new panel opens. This new panel allows the SSR to change the IP address. Press the Ctrl + G
keys to save the changes.
Press the Enter key to execute. This sets the BMC IP address. For information, see the installation
worksheet.
Note: You can see the updated IP address in the box at the bottom of the screen after the changes
are saved.
o. Highlight the Set FSP ipmi static state and netmask (EMS or 3200) menu and press the Enter
key.

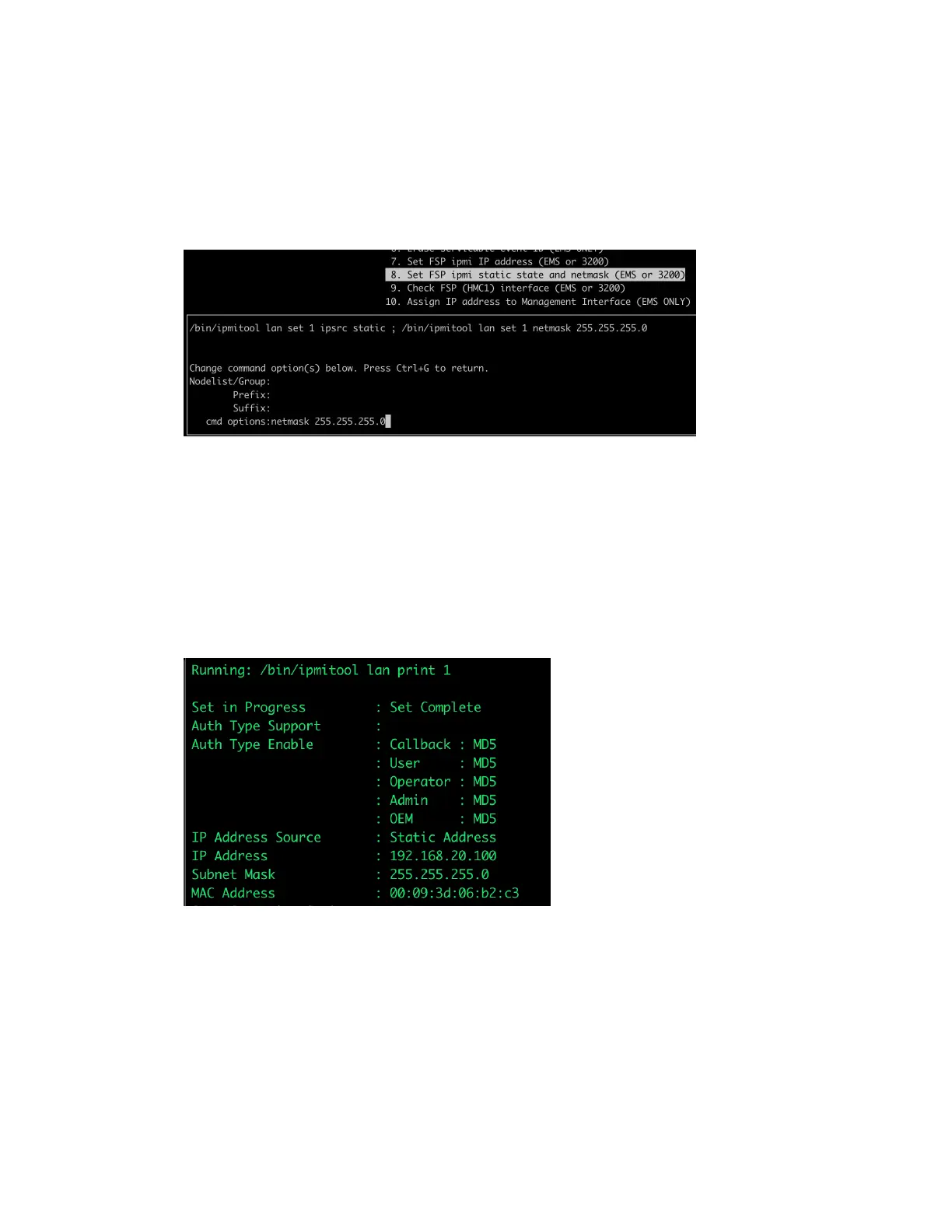

Figure 66. Setting FSP ipmi static state and netmask (EMS or 3200)
You do not need to customize this option. Only reason to modify is, if the netmask is different than
255.255.255.0 (/24).
If you want to modify, highlight the option and press C key. Then, change the subnet and press Ctrl
+ G to save the changes.
Press the Enter key to execute.
p. Highlight the Check FSP (HMC1) interface (EMS or 3200) menu and press the Enter key.
This option conrms that the BMC IP address is set correctly in the previous command.
Figure 67. Checking FSP (HMC1) interface (EMS or 3200)
Press the Enter key to continue.
q. Highlight the Set BMC VLAN tag menu to set the VLAN tag required so that the BMC can talk
to the FSP network. By default press Enter to use VLAN tag 101. If a unique switch/VLAN tag
situation is at hand modify the option with the new value.
Press c key to modify the command.
Change the desired value (from 101).
Press Control+G to save then press Enter to execute.
Chapter 4. Installing
73
