Chapter 1: CN1610 Switch Features 7
SFP+ ports The CN1610 has 16 built-in 10-Gbps SFP+ ports that provide up to 256 Gbps
switching bandwidth (512 Gbps duplex).
Each SFP+ port is capable of supporting the following transceiver modules:
u 10GBase-Cu (direct attach SFP+ twinax copper cable)
u 10GBase-SR (short range optical fiber)
Four 10G SPF+ direct attach cables are included in the shipping package. Other
transceivers and cables are sold separately.
Remote
management port
The remote management port is a 10/100/1000Base-T Ethernet port dedicated to
remote switch management. Traffic on this port is segregated from operational
network traffic on the switch ports and cannot be switched or routed to the
operational network.
Console port The console (RJ45) port is used only for management through a serial interface.
This port provides a direct connection to the switch and allows you to access the
CLI from a console terminal connected to the port through the provided serial
cable (RJ45 to female DB-9 connectors).
The console port supports asynchronous data of eight data bits, one stop bit, no
parity bit, and no flow control. The default baud rate is 9600 bps.

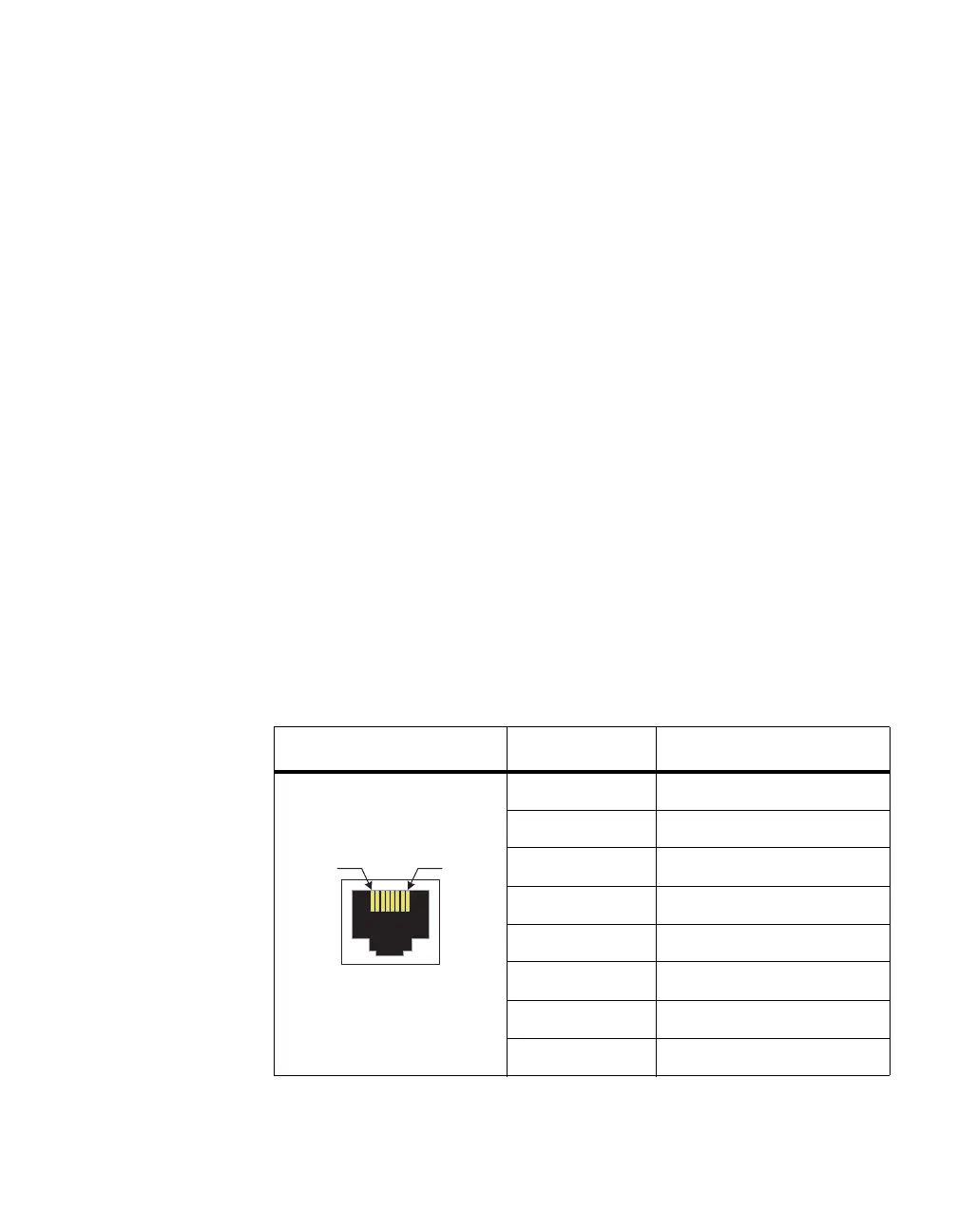

The pin assignment for the console port is shown in the following table:
Connector Pin Number Signal
1 Not used
2 Not used
3 Transmit data (TDX)
4 Signal ground (GND)
5 Signal ground (GND)
6 Receive Data (RXD)
7 Not used
8 Not used
