6 Hardware components
Hardware components
Physical
description
The CN1610 has a 1U chassis design and is rack-mountable in a standard 19-inch
equipment rack or an IBM N series 42U System Cabinet.
The rear panel of the switch provides the following components:
u Switch ports that connect to:
v Nodes
v Other switches (trunk ports)
v Cluster network switch
v Customer LAN
u Remote management port
u Console port
u AC power sockets
u System and port LEDs

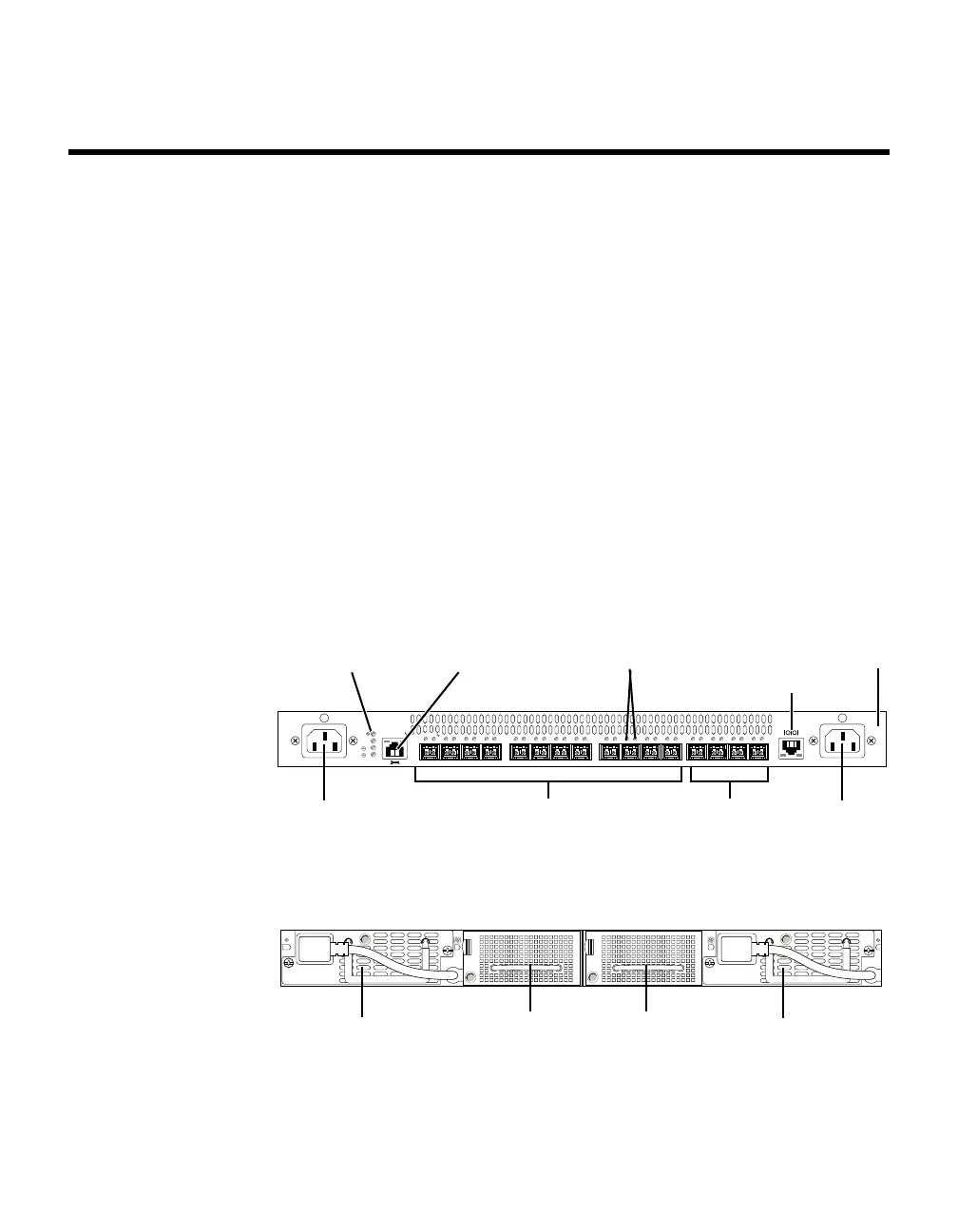

The following figure shows the rear panel of the switch:
The front panel provides access to the power supplies and fan trays:
!
1
2
SPD LNK/
SPD LNK/
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
AC Power
Socket 1
Switch Ports
AC Power
Socket 2
System LEDs
Port LEDs
Management
Port
ISL
Ports
Serial
Number
Console Port
!
11
!
2
2
100-240V~5A
47-63HZ
AC OK
100-240V~5A
47-63HZ
AC Power
Supply 2
AC Power
Supply 1
Fan Tray 2Fan Tray 1
