10 Hardware components
System LED
definitions
The system LEDs provide information about the overall system status, fan status,

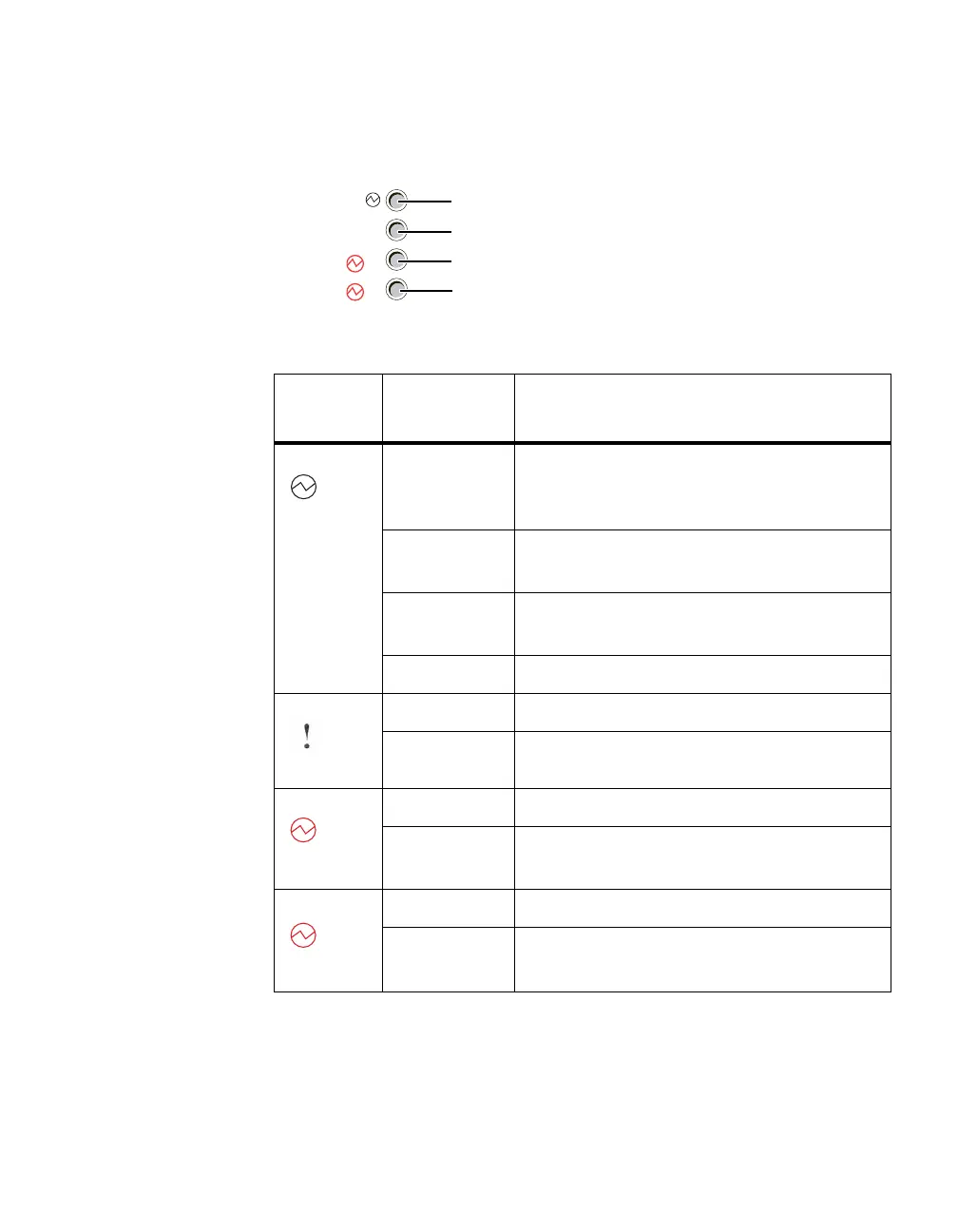

and power-supply status. The following figure identifies each system LED:
The following table describes the system LEDs:
System
LEDs
Color Description
OK
Solid green The switch DC power (all low-voltage
supplies from 3.3 to 1.0V except the standby
DC voltage) is operating normally.
Blinking
green
The switch is booting, and power-on self test
(POST) is in progress.
Blinking
amber
The switch has experienced one or more DC
power faults.
Off A standby DC fault is detected.
Fault
Solid amber One or more fan failures have occurred.
Off The fans are operating normally.
PWR1
Solid amber Power supply 1 has a fault or is missing.
Off Power supply 1 is present and operating
normally.
PWR2
Solid amber Power supply 2 has a fault or is missing.
Off Power supply 2 is present and operating
normally.
!
1
2
OK
Fault
PWR1
PWR2
