IBM NetVista A40 - Page 26

1
2
1Mouse connector 8Audio input connector
2USB connector 2 9Microphone connector
3Parallel connector 10Monitor connector
4Serial connector 2 11Serial connector 1
5Power cord connector 12USB connector 1
6Ethernet connector 13Keyboard connector
7Audio output connector
Note: The connectors on the rear of the computer have color-coded icons.
Icons will help you to determine where to connect the proper cables to
set up your computer.

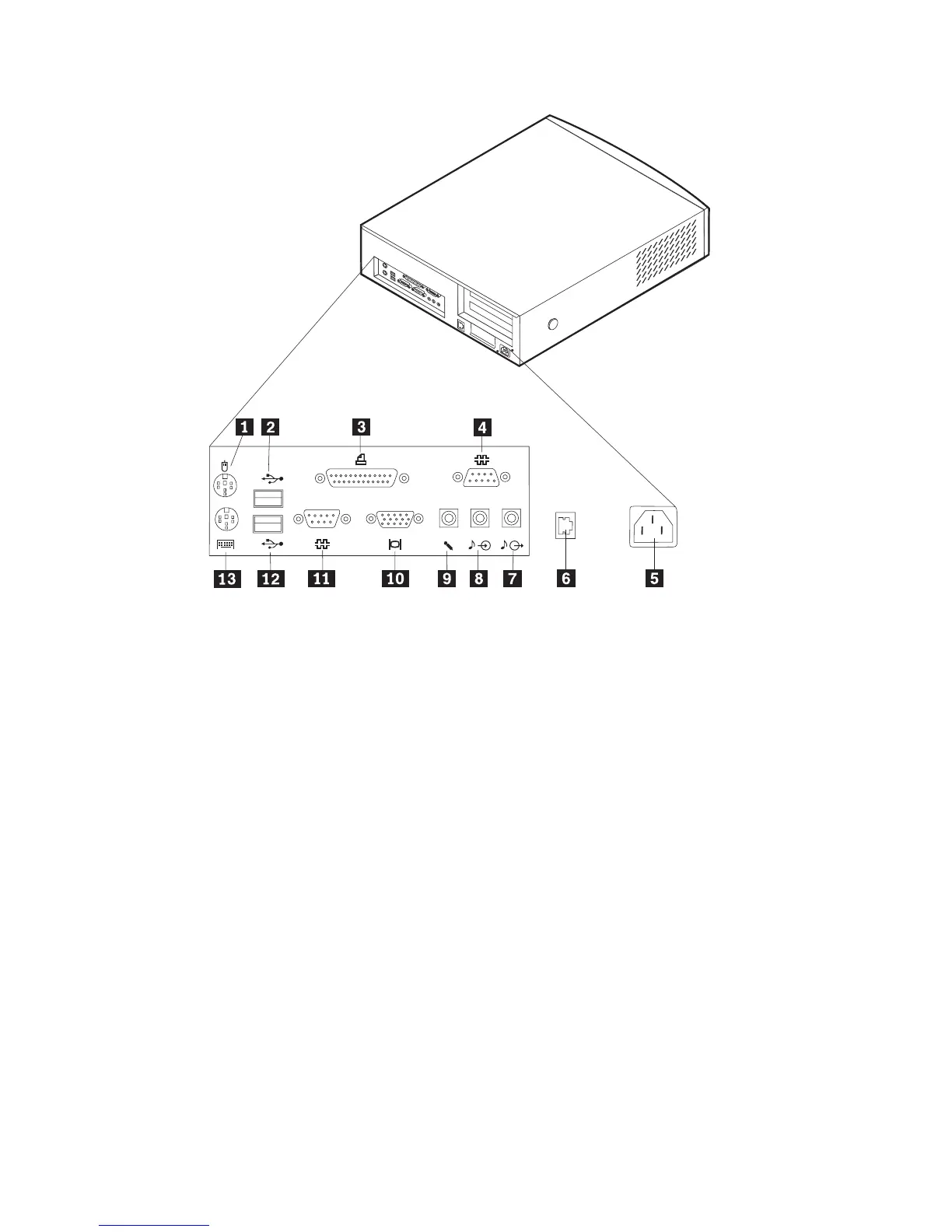

The following illustration shows the location of the connectors on the back of
the desktop model computer. You might not have devices for all of the
connectors shown here.
8 User Guide
