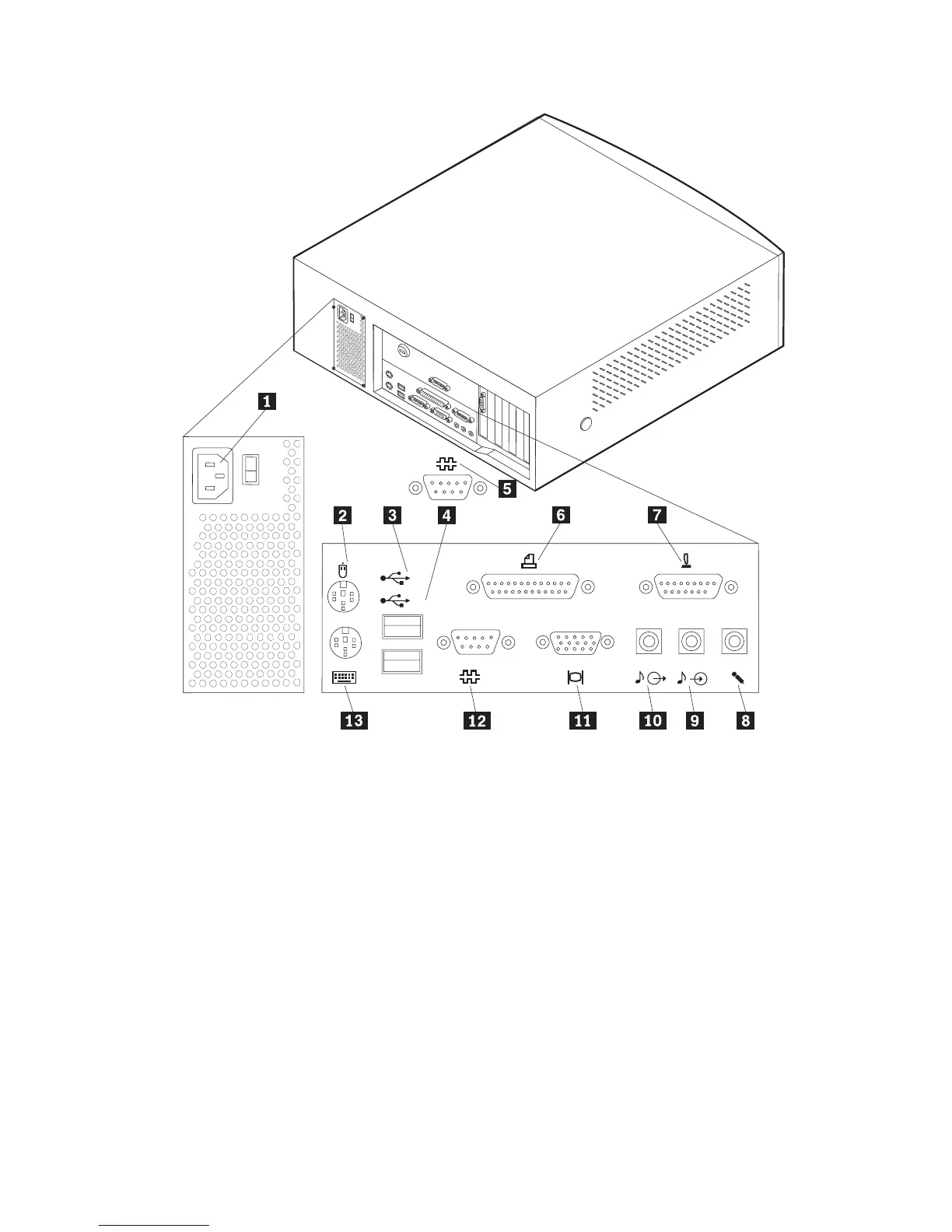

1 Power cord 8 Microphone connector
2 Mouse connector 9 Audio input connector
3 USB connector 2 10 Audio output connector
4 USB connector 1 11 Monitor connector
5 Serial connector 2 12 Serial connector 1
6 Parallel connector 13 Keyboard connector
7 joystick/MIDI
Note: The connectors on the rear of the computer have color-coded icons.
Icons will help you to determine where to connect the proper cables on
your computer.
To set up your computer, use the previous illustrations and the following steps
to connect the cables to your computer.
