Parts/Test Point Locations 113

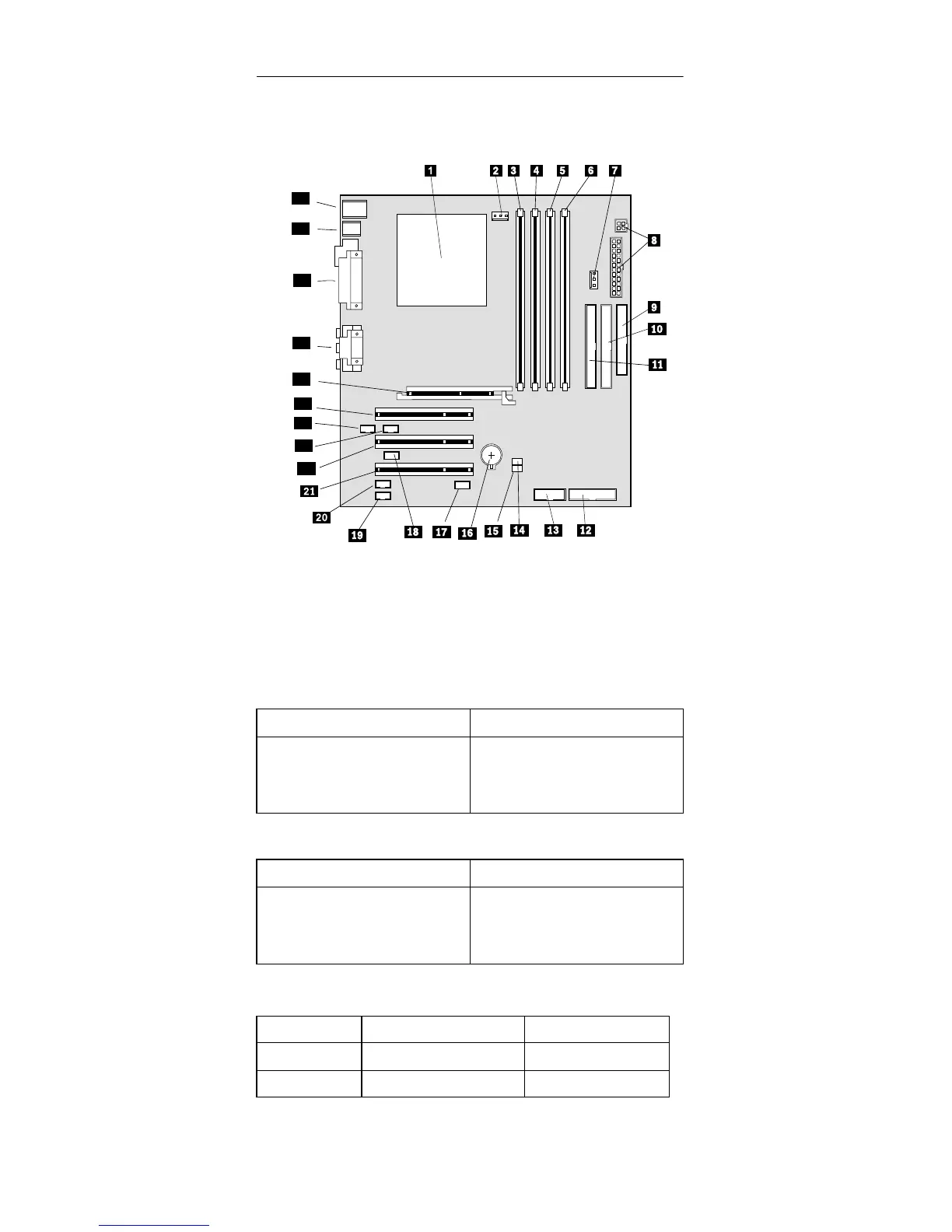

System Board Jumpers and

Connectors

NOTE:

The blackened pin of a jumper represents

pin 1.

System Board Jumper Settings

Jumper/Settings Function

JP20

1-2

2-3

CMOS Setup

*Normal

Clear CMOS

Jumper/Settings Function

COM2F

1-2

2-3

COM2 Detection

*Disable

Enable

System Board Connector Functions

Connector Function Connect to...

1 Processor connector Processor

2 Fan connector Processor fan
