Parts/Test Point Locations 131

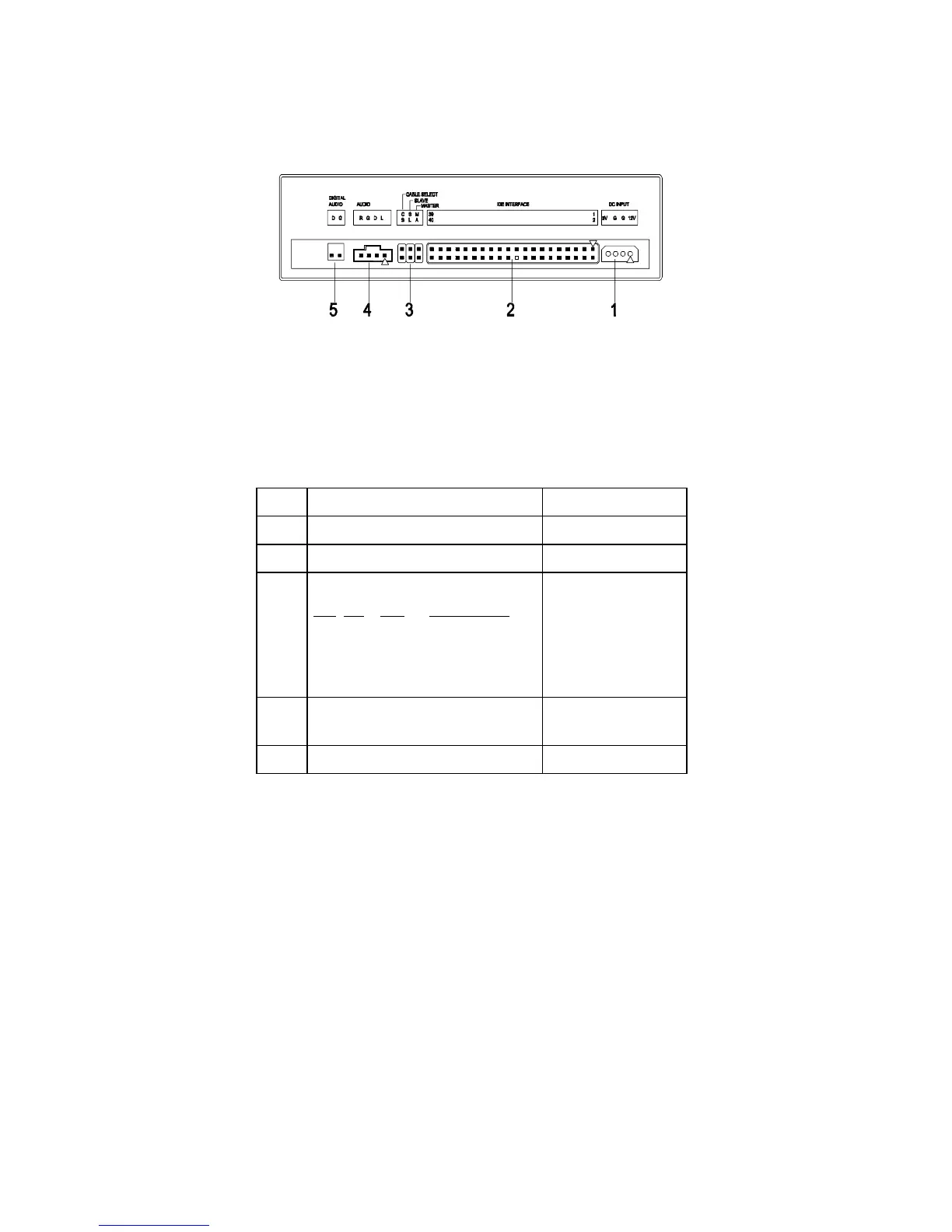

CD-ROM R/W Drive Rear Panel
Connectors and Jumpers
NOTE:
CD-ROM R/W drives may come with item no.
5 (digital audio output and testing jumper)
connectors.
CD-ROM R/W Drive Rear Panel Connectors and
Jumpers
Item Function Connect to...
1 Power supply connector Power supply
2 Interface connector System board
3 Configuration jumper.
CS
SL MA Description
-- -- On Master
-- On -- Slave.
On -- -- Cable select
--
4 Audio line out connector Depends on
sound card
5 Digital audio output --
