d. Replace the cassette cover by doing the following steps:
1) Slide the cover (B) into position on the cassette.
2) While holding the cover latch (A) in the open position, place the cover over the pivot pin (C).
3) Release the cover latch to lock the cover into place.

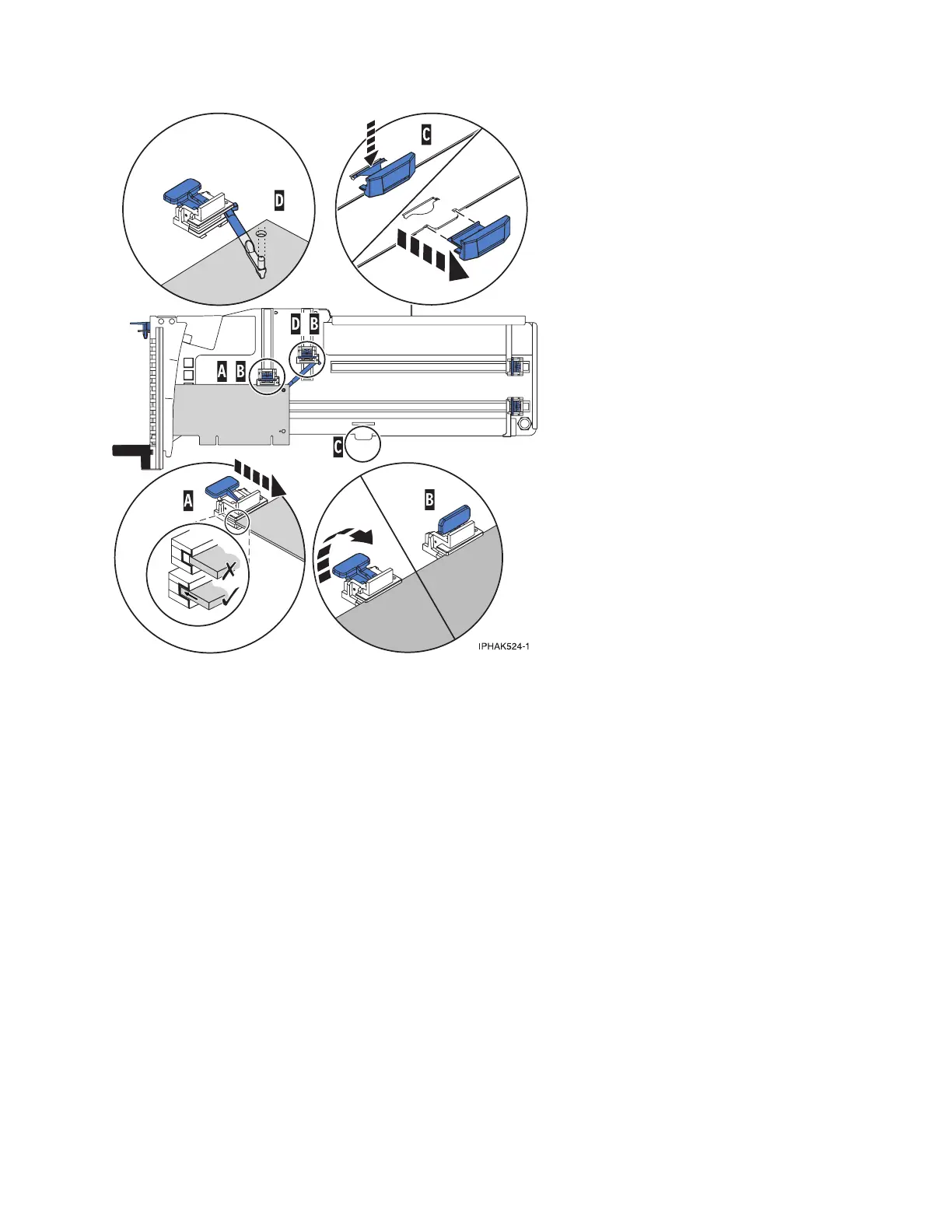

Figure 68. Short adapter in the PCI adapter cassette with the supports and the hook arm in place
Common service procedures 133
