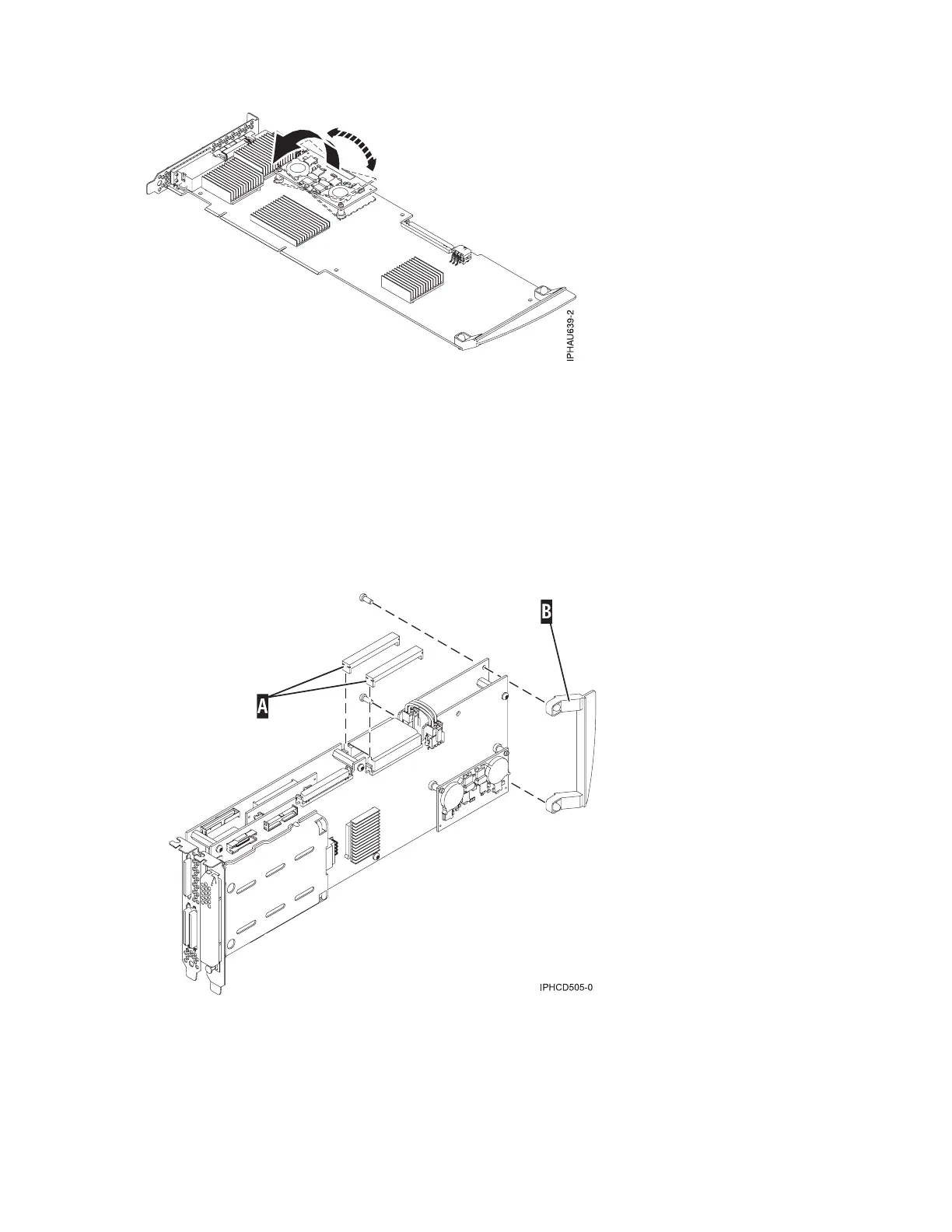

9. Move the cache directory card to the replacement 571F storage adapter and seat it on the connector
and mounting pegs.
10. To reassemble the cards, perform steps1-9inreverse order. To prevent possible card damage, insert
all five screws (C) before tightening any of them.
Note: If you are installing the 571F/575B card set adapter into a cassette, do the following steps:
a. Remove the adapter handle (B) as shown in the following figure.
b. If applicable, remove the light-pipe assembly.
c. Remove the two plastic covers from the Small Computer Systems Interface (SCSI) jumper cable
(A) as shown in the following figure.
d. Ensure that the battery cable (A) and the SCSI cable (B) are reconnected to the 575B auxiliary
cache adapter.
e. Place an adapter in the PCI adapter double-wide cassette to complete the installation.
11. If applicable, to replace the light pipes, do the following steps:
a. Ensure that the 571F/575B cards are correctly assembled.
b. If necessary, remove the 571F/575B card handle (A) from the back of the card set.
Common service procedures 11
