Procedure
1. Use the slide rails to pull the enclosure out of the rack, as described in
“Removing an expansion enclosure from a rack: 2077-92F” on page 95. Ensure
that a mechanical lift is available to support the weight of the enclosure.
Remove the front (4U) fascia
2. Remove the front fascia by removing the two screws that attach the fascia to
the flange on each side of the chassis, as shown in Figure 74 on page 87.

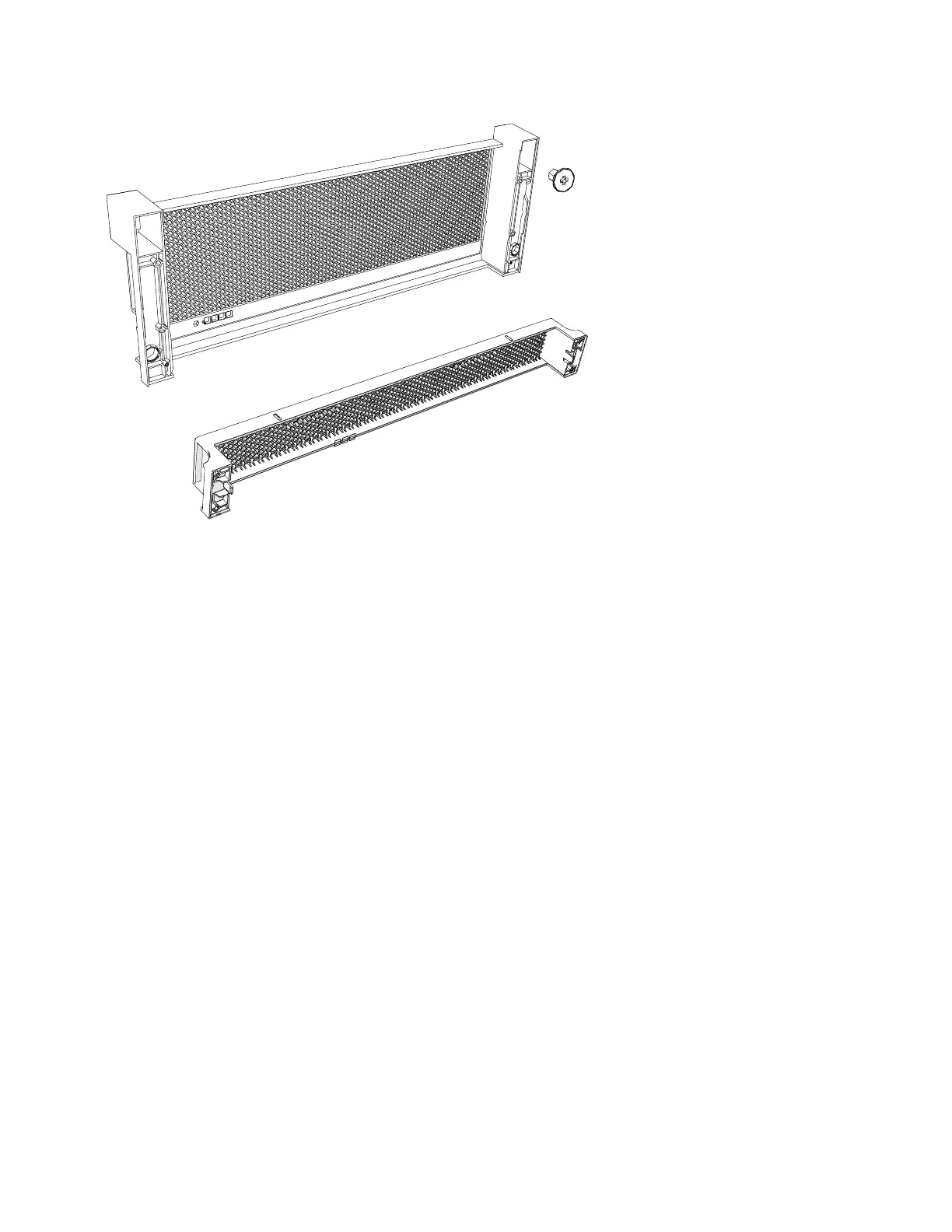

Figure 73. Fascia components on the expansion enclosure
86 Storwize V5000 Gen2: Quick Installation Guide
