3. Verify that the expansion enclosure and its components are operating as
expected.
On the back of the expansion enclosure, all four fans and the expansion
canister indicators (▌3▐ and ▌8▐ in Figure 118) become active when the power is
connected.
▌1▐ Power cable connector for PSU 2
▌2▐ Power cable retention clamps
▌3▐ Fan module
▌4▐ Fan release latch
▌5▐ Fan fault indicator
▌6▐ Expansion canister
svc01098
Figure 117. Power and SAS cable connections on the back of the enclosure
svc01010
8
77
8
1
2
4
5
3
6
9

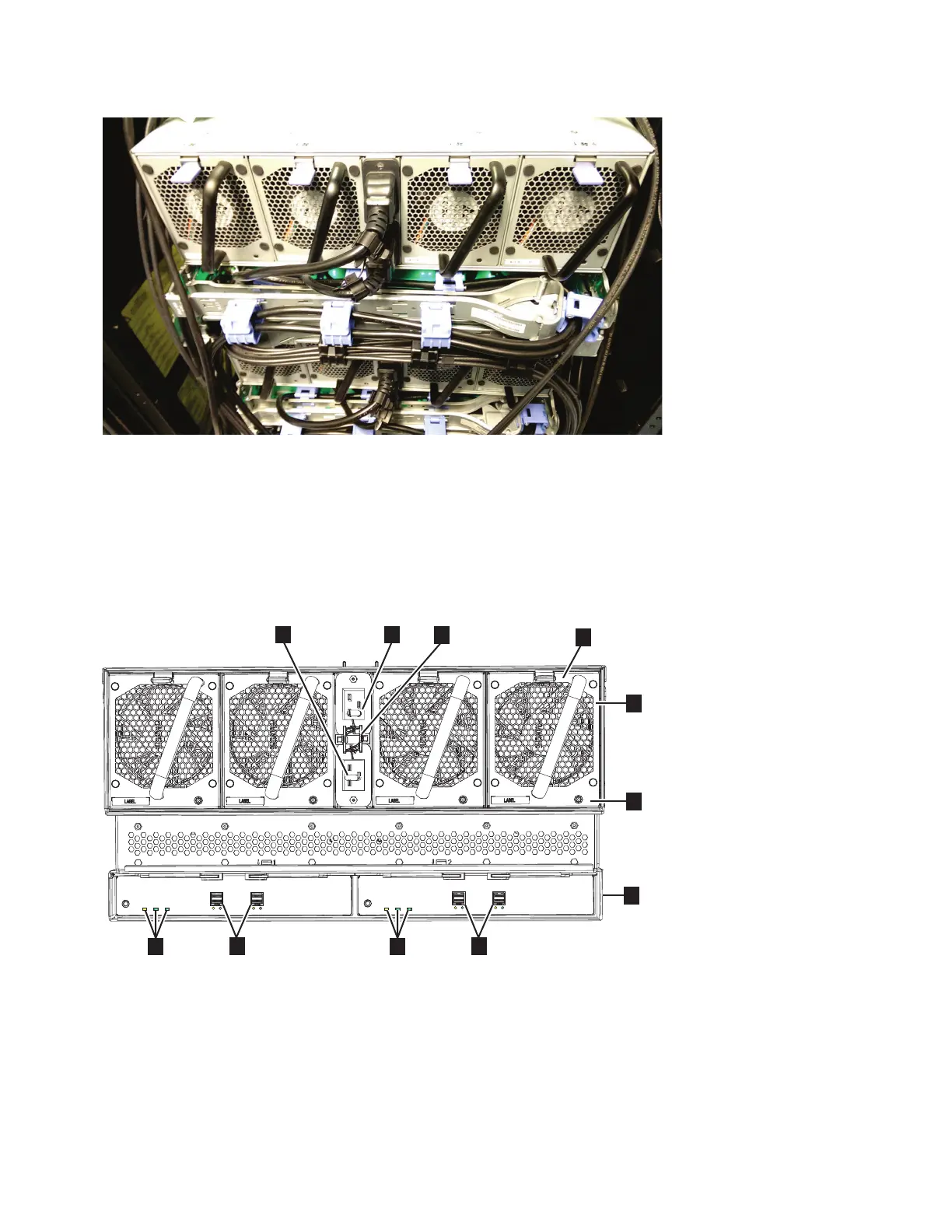

Figure 118. Features on the rear of the 2077-92F expansion enclosure
134 Storwize V5000 Gen2: Quick Installation Guide

IBM Storwize V5000 Gen2 Specifications

General

Model	Storwize V5000 Gen2
Storage Type	Hybrid Flash Array
Form Factor	2U
Maximum Drives	240
Operating System	IBM Spectrum Virtualize
Drive Types	SSD
RAID Levels	0, 1, 5, 6, 10
Host Interface	8 Gbps Fibre Channel (FC), 16 Gbps Fibre Channel (FC), 10 Gbps iSCSI, 12 Gbps SAS
Drive Bays	24
Cache Memory	Up to 64 GB
Power Supply	Redundant, hot-swappable power supplies
Virtualization	Yes
