7. Separate the inner section of the support rails and attach them to each side of
the expansion enclosure, as described in steps 3 on page 50 through 5 on page
50 in “Installing or replacing the support rails: 2077-92F” on page 49.
8. Attach the remaining sections of the support rails to the rack, as described in
step 6 on page 51 in “Installing or replacing the support rails: 2077-92F” on
page 49.
9. Move the mechanical lift to the front of the rack. Align the inner section of the
rails with the mid section of the rails that are extending from the rack.
10. On each side, push the inner section and middle section of the rails together
until they click and will no longer separate, as described in step 1 on page 58
in “Installing or replacing an expansion enclosure in a rack: 2077-92F” on page
52.
11. Remove the 4U and 1U fascia from the boxes in which they were shipped, as
shown in Figure 29.
▌1▐ 4U fascia (front)
▌2▐ 1U fascia (power supply units)
12. Attach the 4U and 1U fascia to the front of the enclosure, as described in
“Installing or replacing the fascia: 2077-92F” on page 80.
13. Install the drives, as described in “Installing or replacing a drive: 2077-92F” on
page 72.
14. Replace the top cover, as described in “Installing or replacing the top cover:
2077-92F” on page 71.
15. Lower the mechanical lift so that you can remove the remaining foam blocks
away from the expansion enclosure.
16. Slide the latch on the side of each rail and push the expansion enclosure
securely into the rack, as described in steps 6 on page 59 through 8 on page
59 in “Installing or replacing an expansion enclosure in a rack: 2077-92F” on
page 52.

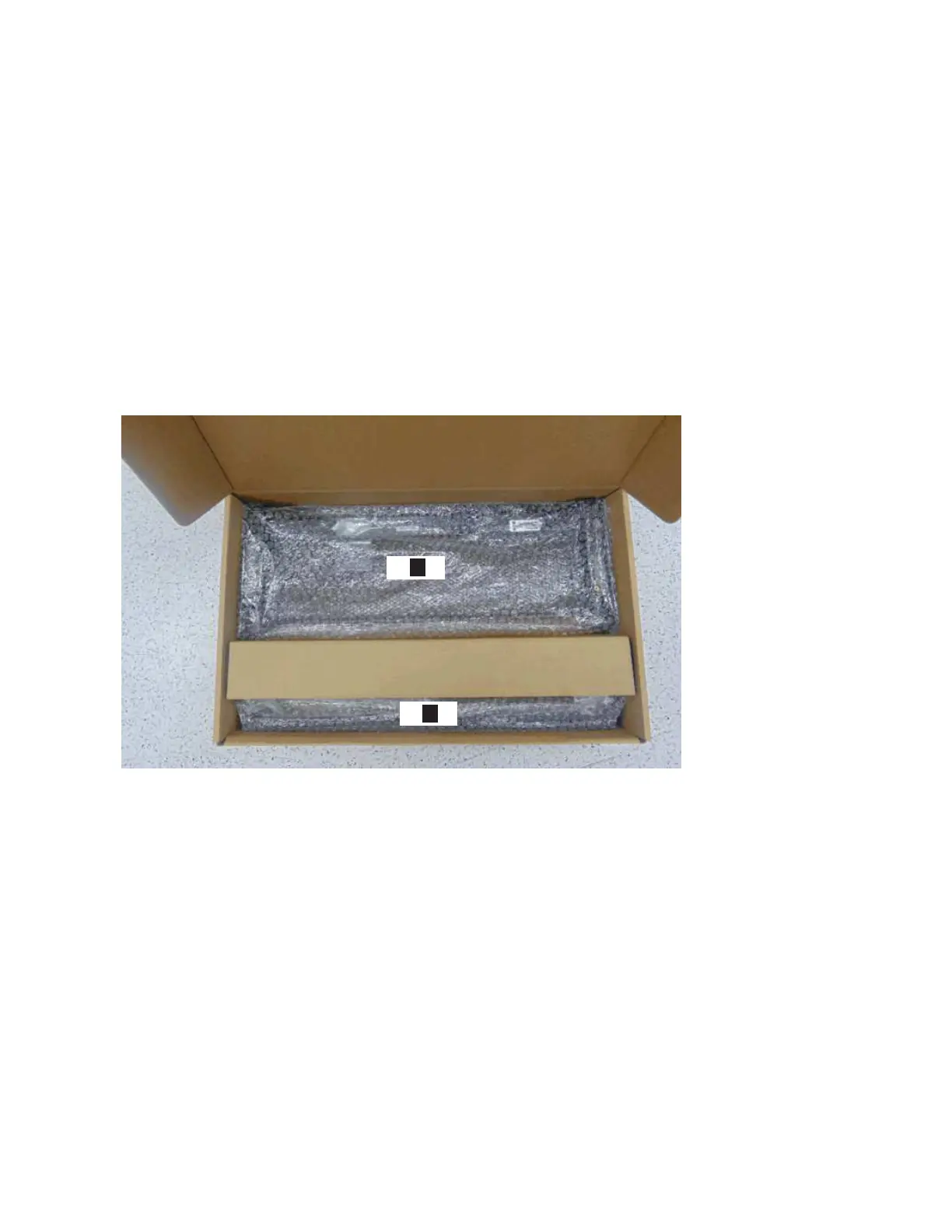

Figure 29. Packaging for fascia
Chapter 2. Installing the system hardware 47
