The drive slots must be populated sequentially, starting from the back-left
corner position (slot 1, grid A1). Sequentially install the drive in the slots from
left to right and back row to front. Always complete a full row before you
install drives in the next row. For example, in Figure 61, the drives are
installed correctly. Drives are installed in slots 1 -14 of row A and the
installation continues in slot 15 in row B.
In Figure 62 on page 75, the drives are not installed correctly. Slot 1 (A1) does
not contain a drive. In addition, drives are installed in row B even though row
A contains empty drive slots.
svc01054

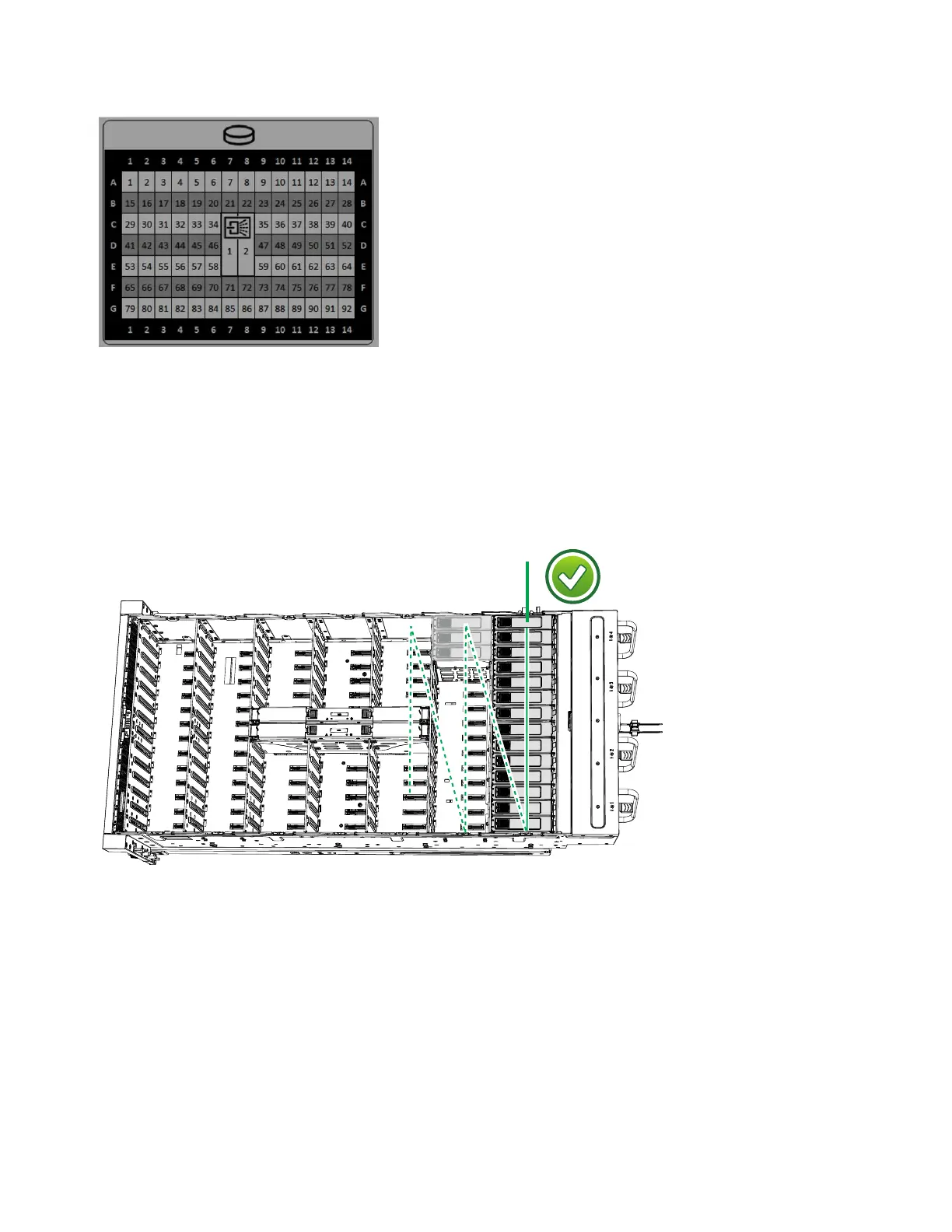

Figure 60. Drive locations in a 2077-92F expansion enclosure
svc01044
Figure 61. Correct drive installation
74 Storwize V5000 Gen2: Quick Installation Guide

IBM Storwize V5000 Gen2 Specifications

General

Model	Storwize V5000 Gen2
Storage Type	Hybrid Flash Array
Form Factor	2U
Maximum Drives	240
Operating System	IBM Spectrum Virtualize
Drive Types	SSD
RAID Levels	0, 1, 5, 6, 10
Host Interface	8 Gbps Fibre Channel (FC), 16 Gbps Fibre Channel (FC), 10 Gbps iSCSI, 12 Gbps SAS
Drive Bays	24
Cache Memory	Up to 64 GB
Power Supply	Redundant, hot-swappable power supplies
Virtualization	Yes
