IBM SurePOS 700-743 - G Configuration Dimms; Service Processor

Service processor
SurePOS 700 Series Models 723, E23, 743, C43, E43, 783, E83, 784, C84, and
E84 include a complete implementation of a service processor to monitor system
health.
LEDs provide a quick diagnosis of a critical system or device failure:
Front panel
Power (green)
Hard disk drive (HDD) activity (green)
INFO (amber)
Behind the front door
Processor fan failure (amber)
System board failure (amber)
Upper HDD failure (amber)
Lower HDD failure (amber)
Power supply failure (amber)
On system board
Memory has power (red)
Service processor heartbeat (amber)
Backup BIOS active (red)
2 GB
2 GB
2 GB
2 GB
A
B
C
D

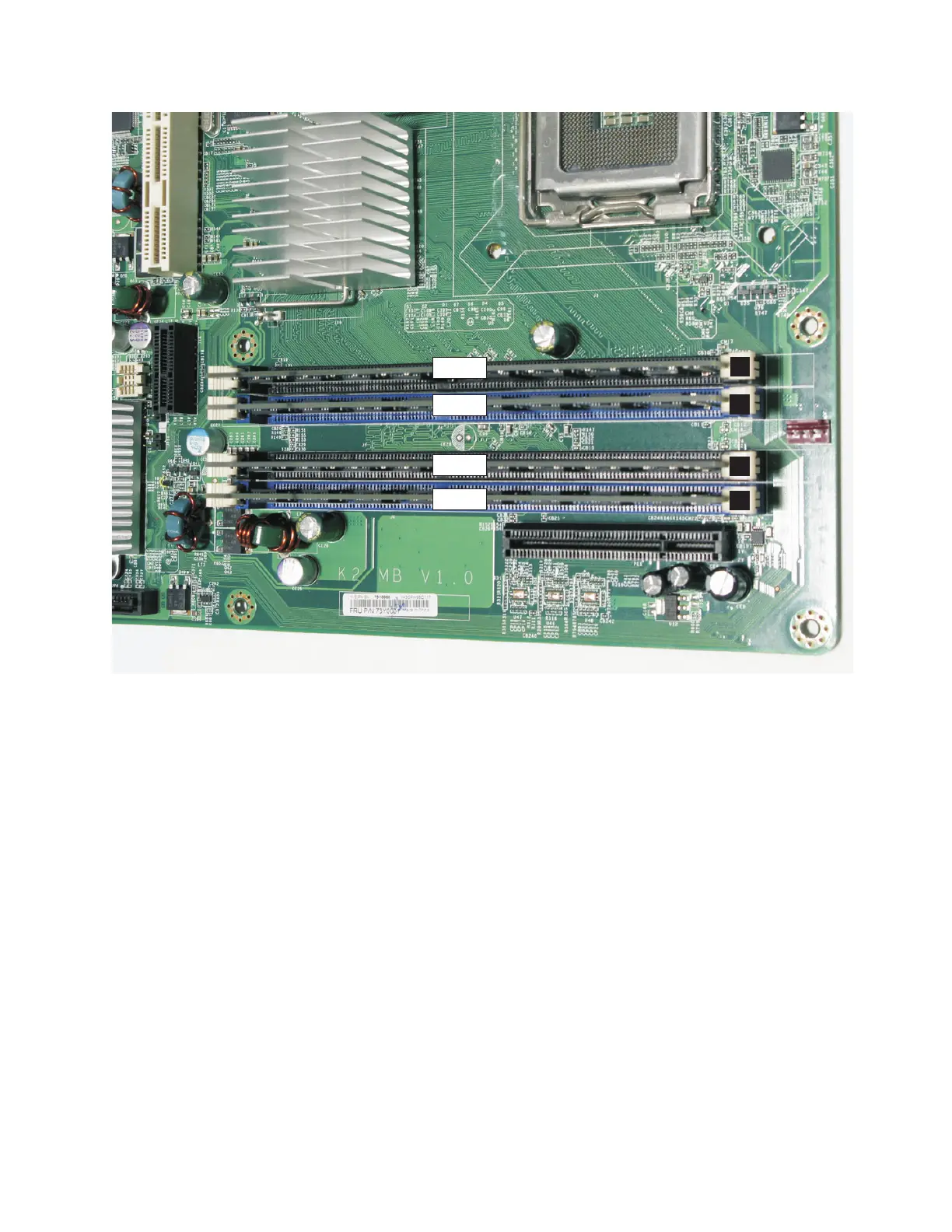

Figure 4. 8 G configuration DIMMs
Chapter 1. Introducing the SurePOS 700 models 7
