Cash drawers
The SurePOS 700 Models 723, E23, 743, C43, E43, 783, E83, 784, C84, and E84
are preconfigured from the factory to work with all IBM cash drawers. In this
automatic mode, the system can detect the difference between IBM 24 V and IBM
38 V cash drawers. Cash drawer port 3A provides an autosensing function for an
IBM cash drawer.
CAUTION:
If you have two connected cash drawers, both drawers must be the same
voltage. Automatic mode sets the cash drawer operating voltage for both
cash drawer ports. If you connect a 24 V cash drawer to port 3A and then
connect a second drawer, it must also be a 24 V drawer. If you are using a
non-IBM drawer, the automatic mode will not work correctly, and damage to
the cash drawer, the system unit, or both is possible.
You can configure the cash drawer voltage (24 V or 38 V) with the configuration
options in the POS configuration setup program or with the jumper override.

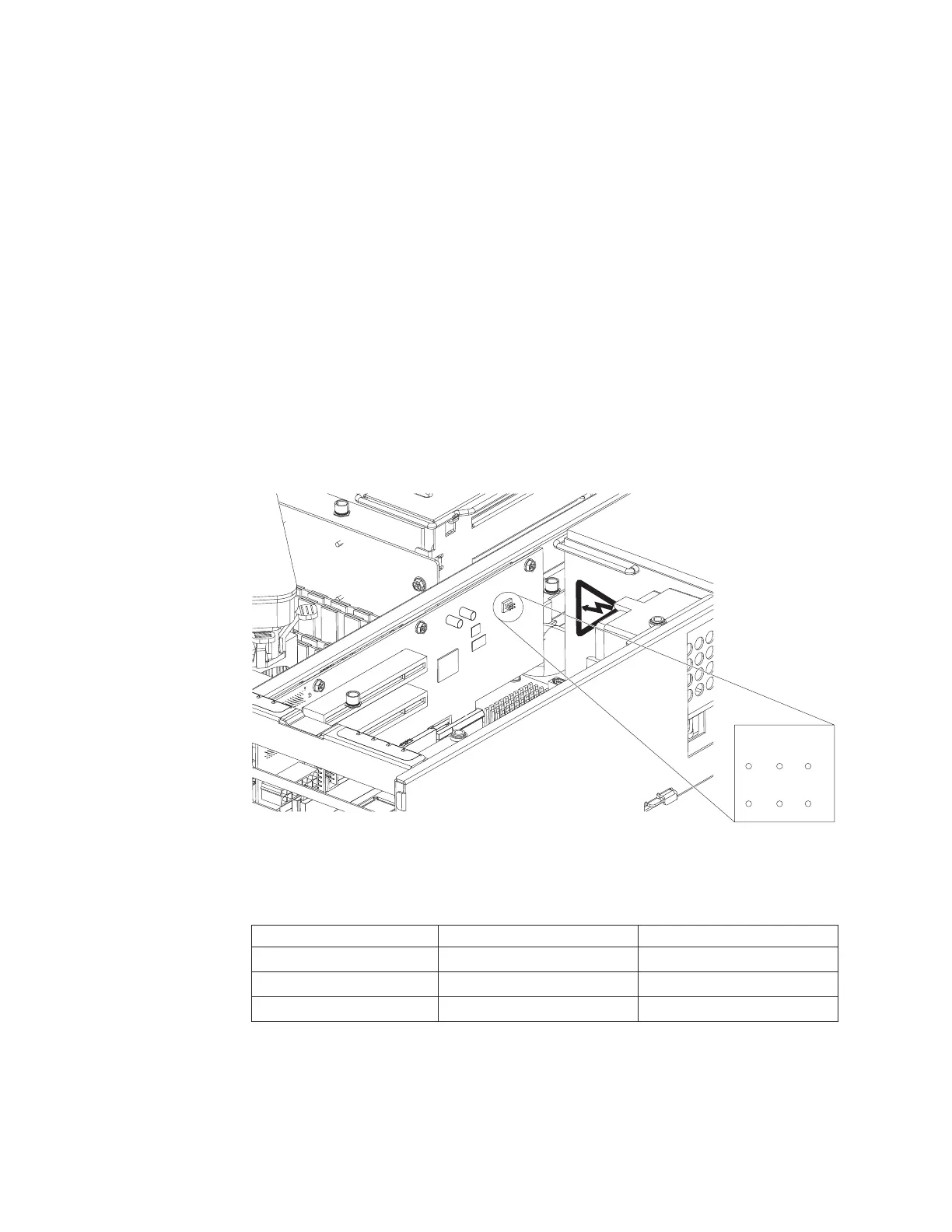

Figure 14 shows the location of the cash drawer voltage jumper on the riser card
and a diagram with the position of the jumpers.
Table 8 provides the correct jumper settings for the 24 V and 38 V cash drawers.
Table 8. Cash drawer jumper settings
Voltage Jumper JP2 Jumper JP3
Automatic setup (default) Not used 2-3
Manual 38 V 1-2 1-2
Manual 24 V 2-3 1-2
Voltage setting for the 4689 DBCS SurePOS Receipt Journal printer
To operate correctly with the SurePOS 700 Models 723, E23, 743, C43, E43, 783,
E83, 784, C84, and E84, the 4689 double-byte character set (DBCS) SurePOS
1
2
3
JP2
JP3
Figure 14. Setting the cash drawer using the jumper override
22 SurePOS 700-723/743/783/784 Hardware Service Guide
