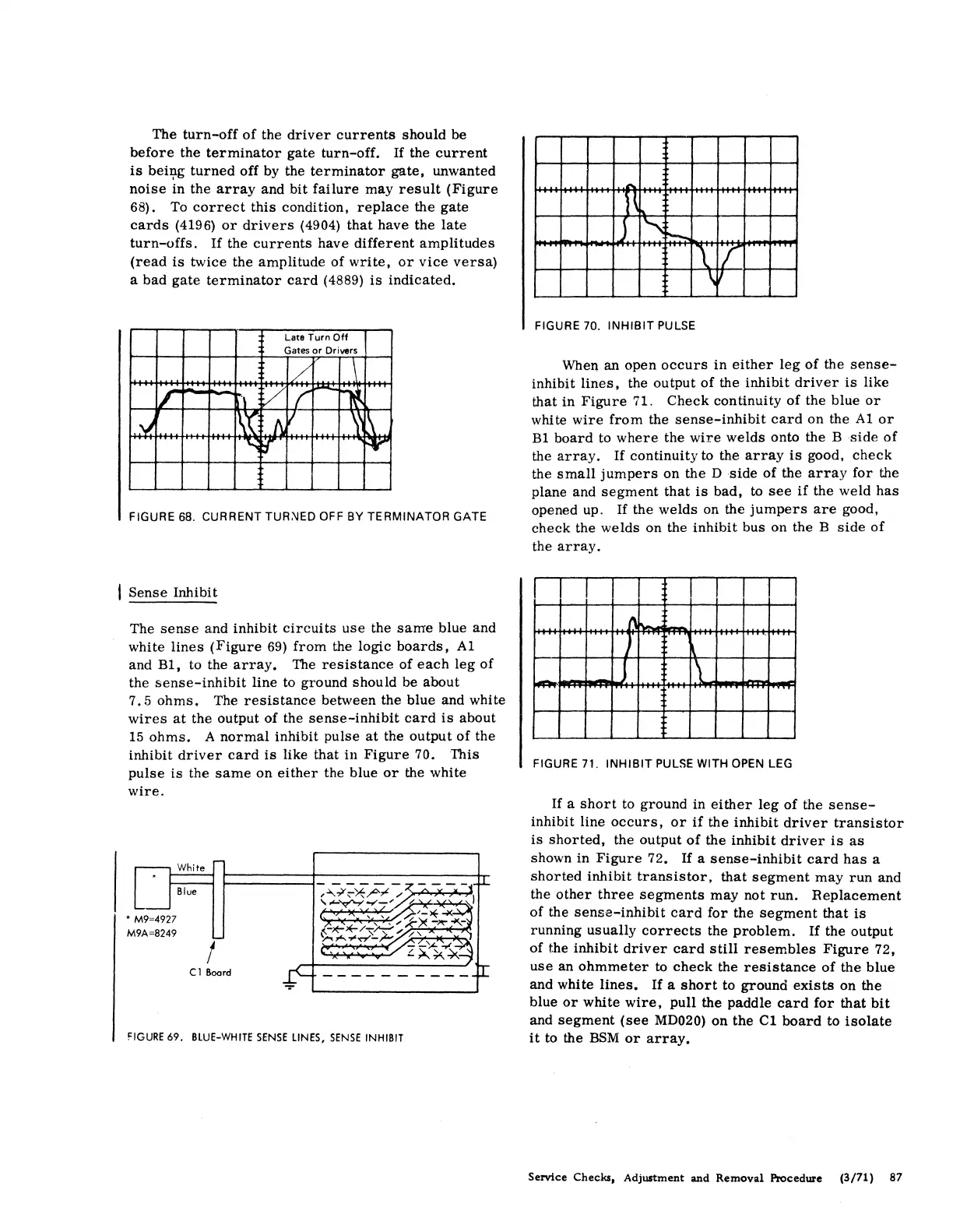

The
turn-off
of
the
driver
currents
should
be
before
the
terminator
gate
turn-off.
If
the
current
is
bei:r,ig
turned
off by the
terminator
gate,
unwanted
noise
in
the
array
and
bit
failure
may
result
(Figure
68). To
correct
this
condition,
replace
the
gate
cards
(4196)
or
drivers
(4904)
that
have the
late
turn-offs.
If
the
currents
have
different
amplitudes
(read
is
twice the
amplitude
of
write,
or
vice
versa)
a
bad
gate
terminator
card
(4889)
is
indicated.
Late Turn Off
Gates
or
Drivers
L1
I
IL_
Lt
0
£J
[]
::i_
~t
11V
\\~
~
f
t'V'1
FIGURE 68. CURRENT TURNED OFF
BY
TERMINATOR GATE
I
Sense
Inhibit
The
sense
and
inhibit
circuits
use
the
same
blue and
white
lines
(Figure
69)
from
the logic
boards,
Al
and
Bl,
to the
array,
The
resistance
of
each
leg
of
the
sense-inhibit
line to ground
should
be about
7. 5
ohms.
The
resistance
between the
blue
and white
wires
at
the output
of
the
sense-inhibit
card
is
about
15
ohms.
A
normal
inhibit
pulse
at
the
output
of
the
inhibit
driver
card
is
like
that
in
Figure
70.
This
pulse
is
the
same
on
either
the blue
or
the white
wire.
* M9=4927
M9A=8249
I
Cl
Boord
FIGURE
69.
BLUE-WHITE
SENSE
LINES,
SENSE
INHIBIT
....
,\
~
J
b
I 'L
v
FIGURE 70.
INHIBIT
PULSE
When an
open
occurs
in
either
leg
of
the
sense-
inhibit
lines,
the
output
of
the
inhibit
driver
is
like
that
in
Figure
71.
Check
continuity
of
the
blue
or
white
wire
from
the
sense-inhibit
card
on
the
Al
or
Bl
board
to
where
the
wire
welds
onto the B
side
of
the
array.
If
continuity
to the
array
is
good,
check
the
small
jumpers
on
the
D
side
of
the
array
for
the
plane and
segment
that
is
bad, to
see
if
the
weld
has
opened up.
If
the
welds
on the
jumpers
are
good,
check
the
welds
on the
inhibit
bus on the B
side
of
the
array.
1l
T
J
,\
FIGURE
71.
INHIBIT
PULSE
WITH
OPEN
LEG
If
a
short
to
ground
in
either
leg
of
the
sense-
inhibit line
occurs,
or
if
the
inhibit
driver
transistor
is
shorted,
the
output
of
the
inhibit
driver
is
as
shown
in
Figure
72.
If
a
sense-inhibit
card
has
a
shorted
inhibit
transistor,
that
segment
may
run
and
the
other
three
segments
may
not
run.
Replacement
of
the
sense-inhibit
card
for
the
segment
that
is
running
usually
corrects
the
problem.
If
the
output
of
the
inhibit
driver
card
still
resembles
Figure
72,
use
an
ohmmeter
to
check
the
resistance
of
the
blue
and white
lines.
If
a
short
to
ground
exists
on the
blue
or
white
wire,
pull
the paddle
card
for
that
bit
and
segment
(see
MD020)
on
the
Cl
board
to
isolate
it
to the
BSM
or
array.
Service Checks, Adjustment and
Removal
Pl'Ocedure
(3/71)
87
