IBM System x3500 M2 Type 7839 - Closing the Power-Supply Cage

Power converter
cable
Optical power cable
SATA connector
Tape drive

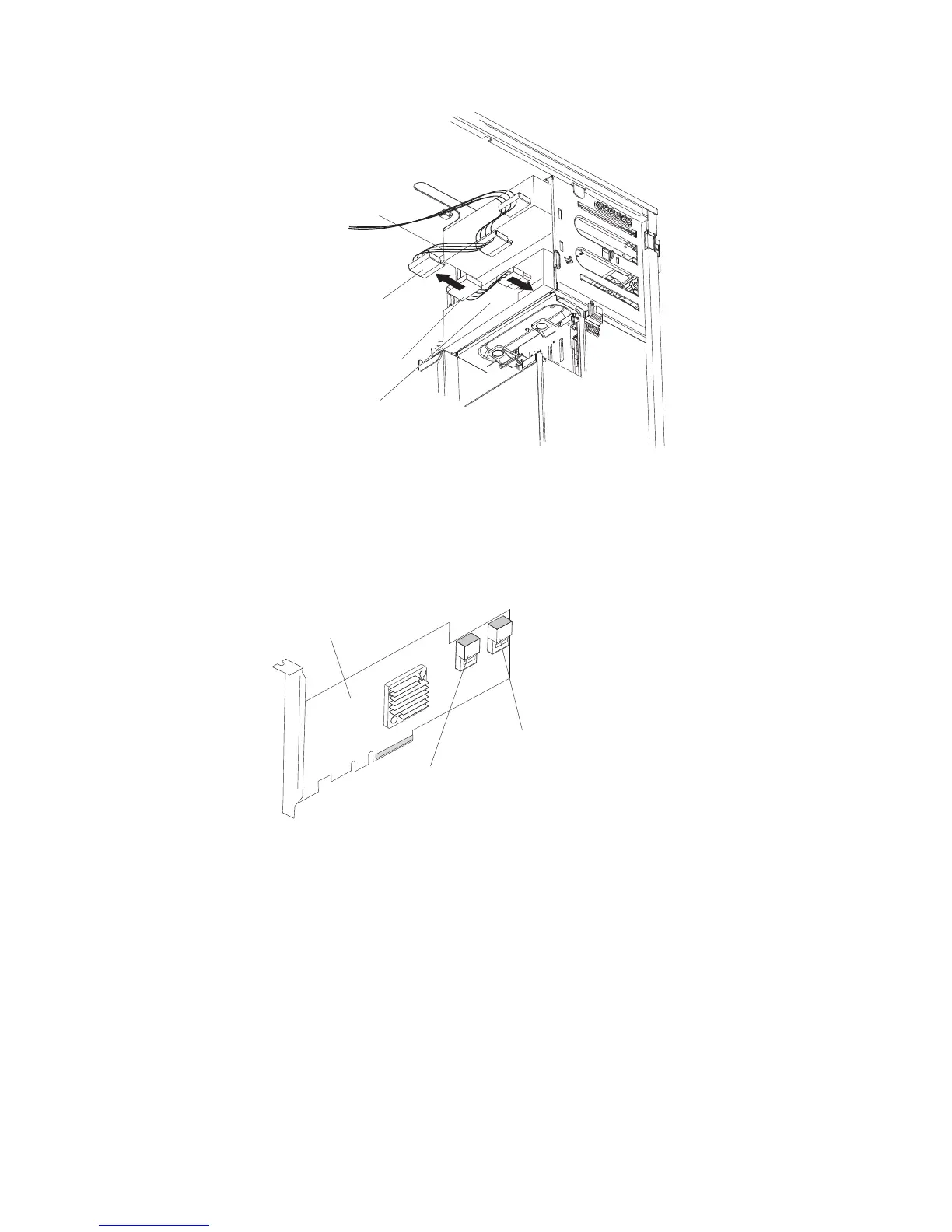

The following illustration shows the cable connectors on the ServeRAID-BR10i
controller.
ServeRAID-BR10i
controller
Cable connector
for drives 4 - 7
Cable connector
for drives 0 - 3
1
0
The following illustration shows the cable connectors on the ServeRAID-MR10i
controller.
Chapter 2. Installing optional devices 39
