Review the following information before connecting power, configuration, and signal
cables:
1. For server models with four 3.5-inch hot-swap hard disk drives.

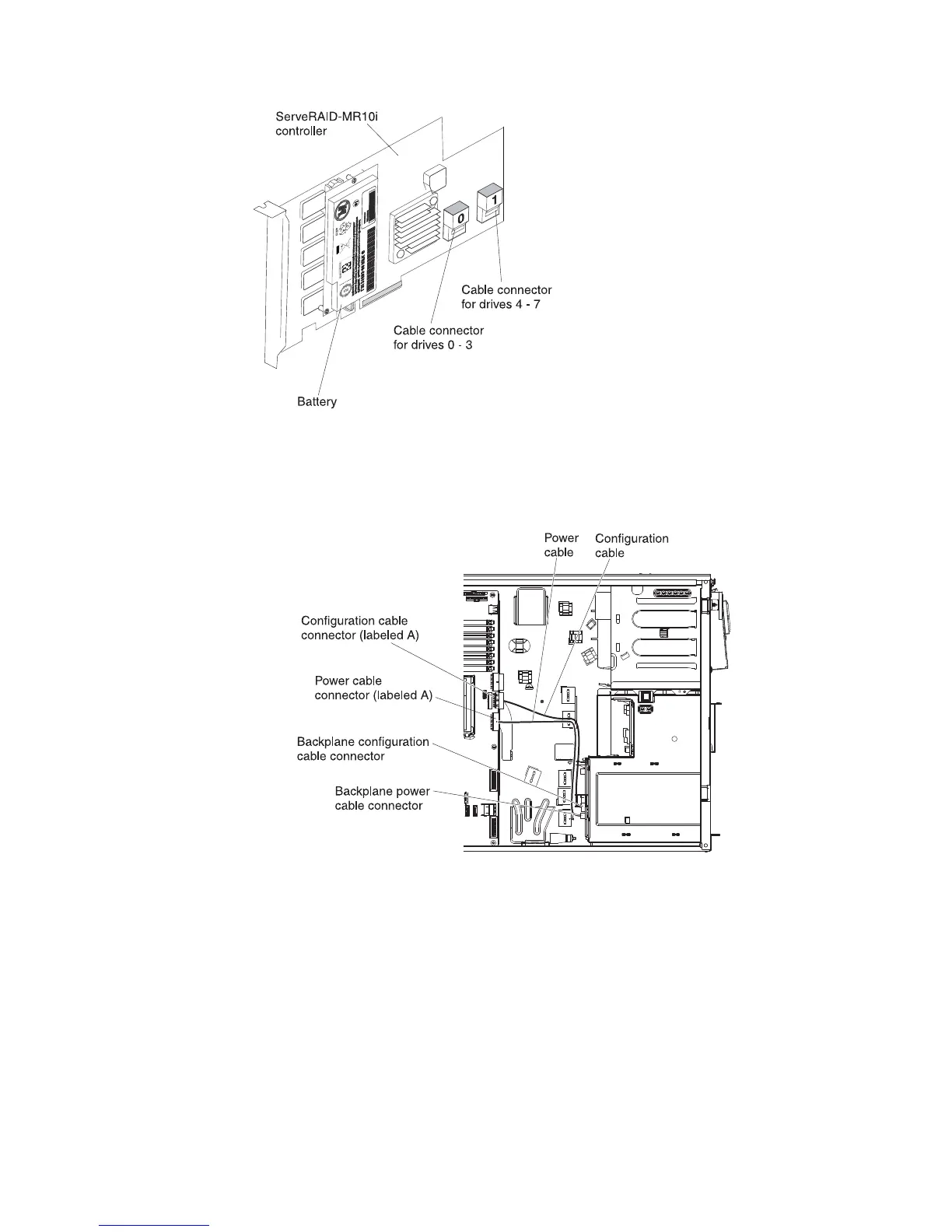

v The following illustration shows the internal power and configuration cable
routing.
v The following illustration shows the internal signal cable routing for installing a
ServeRAID-BR10i SAS/SATA adapter.
40 IBM System x3500 M2 Type 7839: Installation and User’s Guide
