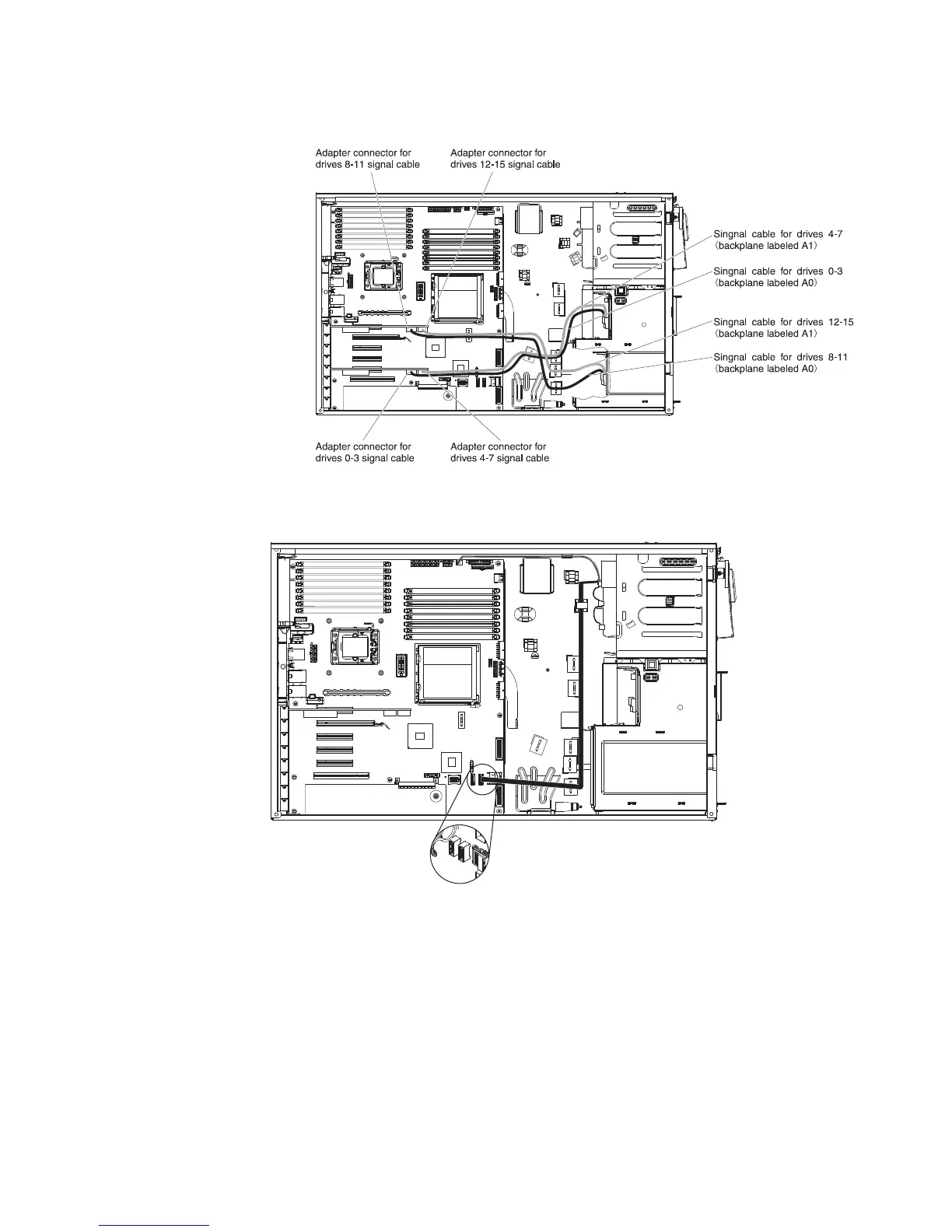

v The following illustration shows the internal signal cable routing for installing a
ServeRAID-MR10i SAS/SATA adapter.
The following illustration shows the internal SATA and power cable routing and the
connectors from the DVD drive to the system board.
Chapter 2. Installing optional devices 45
