IBM System x3650 M3 4255 User Manual

c. Align the heat sink above the microprocessor with the thermal-grease side
down.

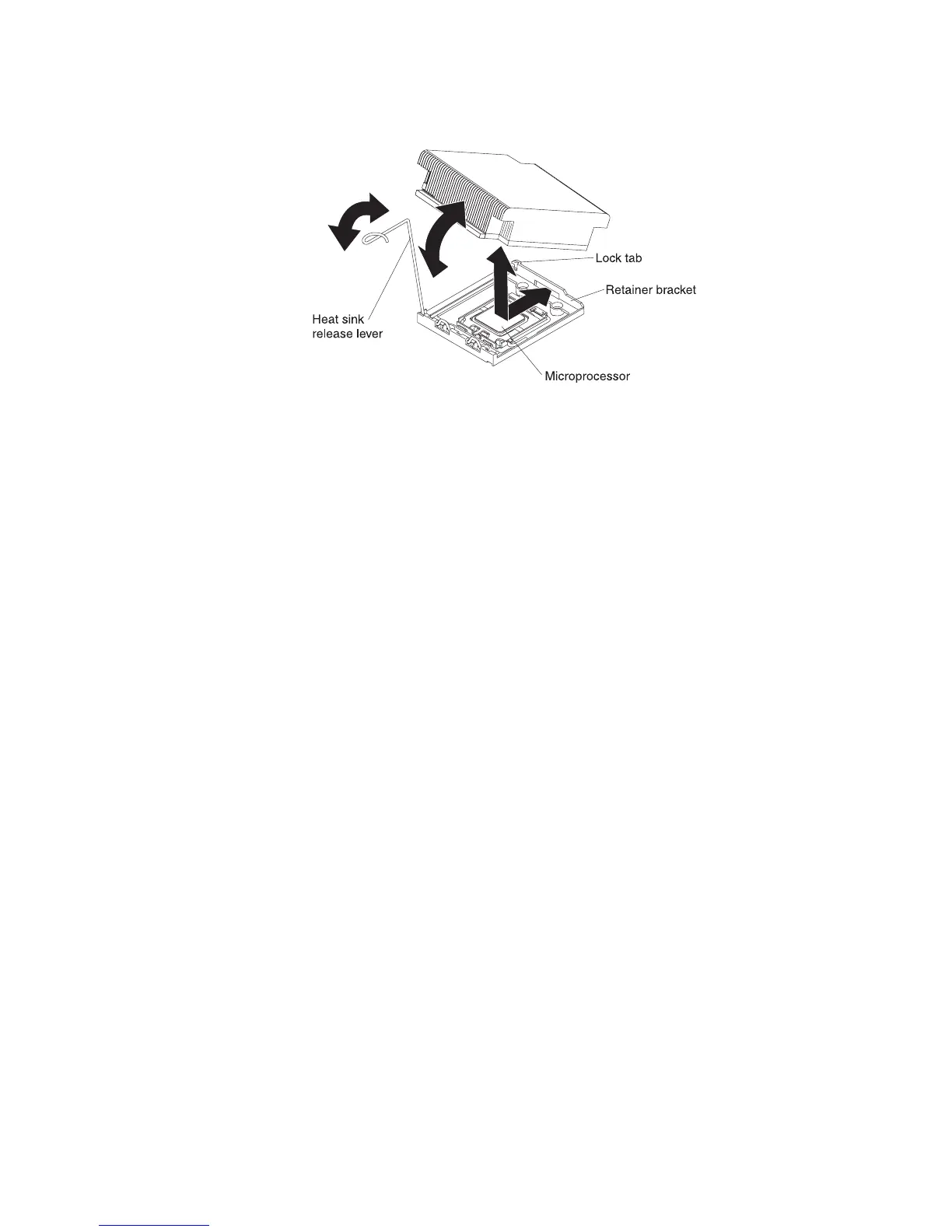

d. Slide the rear flange of the heat sink into the opening in the retainer
bracket.
e. Press down firmly on the front of the heat sink until it is seated securely.
f. Rotate the heat-sink release lever to the closed position and hook it
underneath the lock tab.
10. Install the microprocessor air baffle (see “Installing the microprocessor 2 air
baffle” on page 49).
11. Install PCI riser-card assembly 2 (see “Installing a PCI riser-card assembly” on
page 47).
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 139.
102 System x3650 M3 Types 4255, 7945, and 7949: Installation and User’s Guide

IBM System x3650 M3 4255 Specifications

General

Form Factor	2U Rack
Chipset	Intel 5520
Max Processors	2
Processor	Intel Xeon 5600 series
Memory	Up to 192GB DDR3
Network Interface	Dual-port Gigabit Ethernet
Hard Drive Bays	Up to 16 x 2.5" or 6 x 3.5"
RAID Support	RAID 0, 1, 10
Memory Slots	18 DIMM slots
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
