Removing the SAS riser-card and controller assembly
To remove the SAS riser-card and controller assembly from the server, complete
the steps for the applicable server model.
v 16-drive-capable server model:

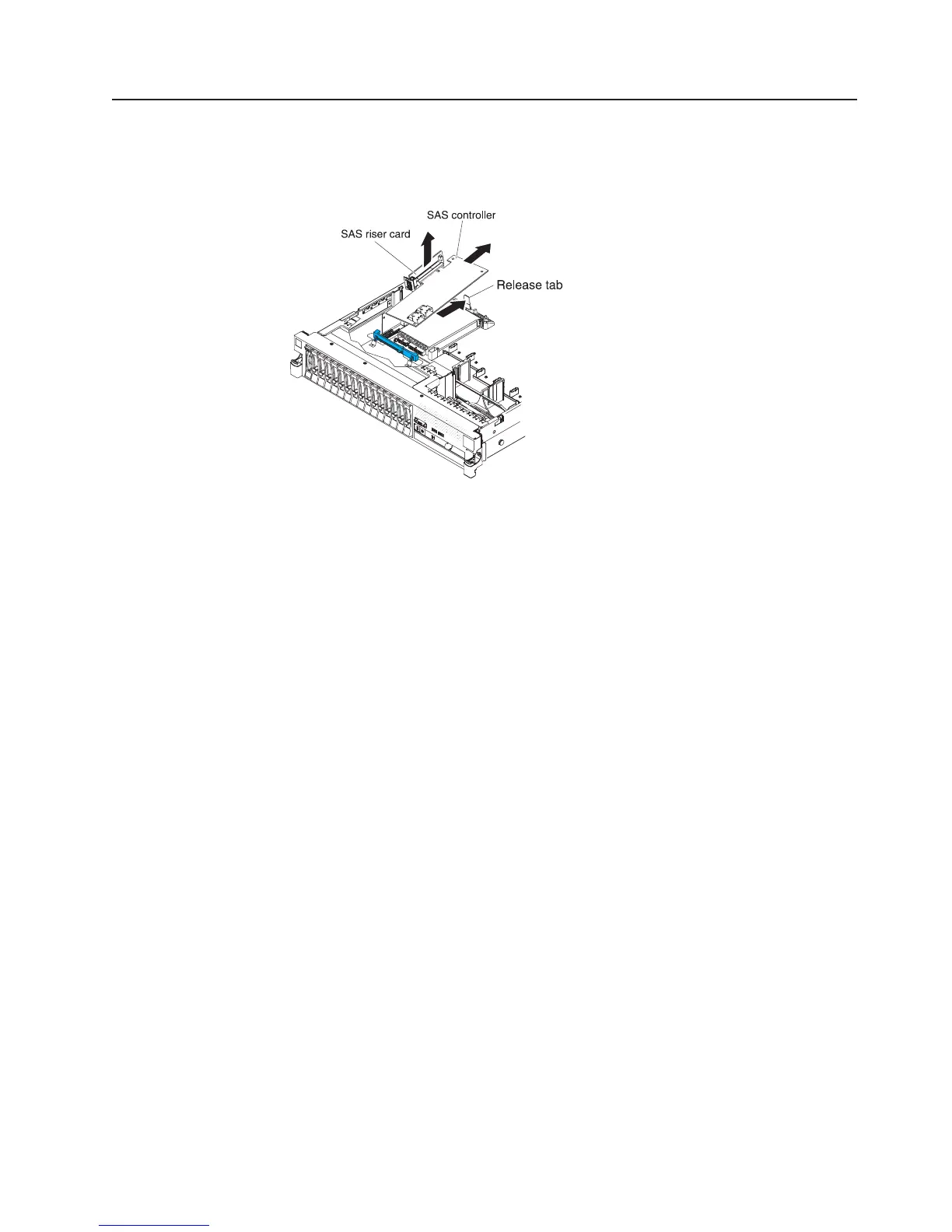

1. Press the assembly release latch toward the rear of the server and lift that
end of the SAS controller assembly a little. Place your fingers underneath the
upper portion of the SAS riser-card and lift the assembly from the system
board.
2. Lift the assembly out of the server.
Chapter 2. Installing optional devices 117
