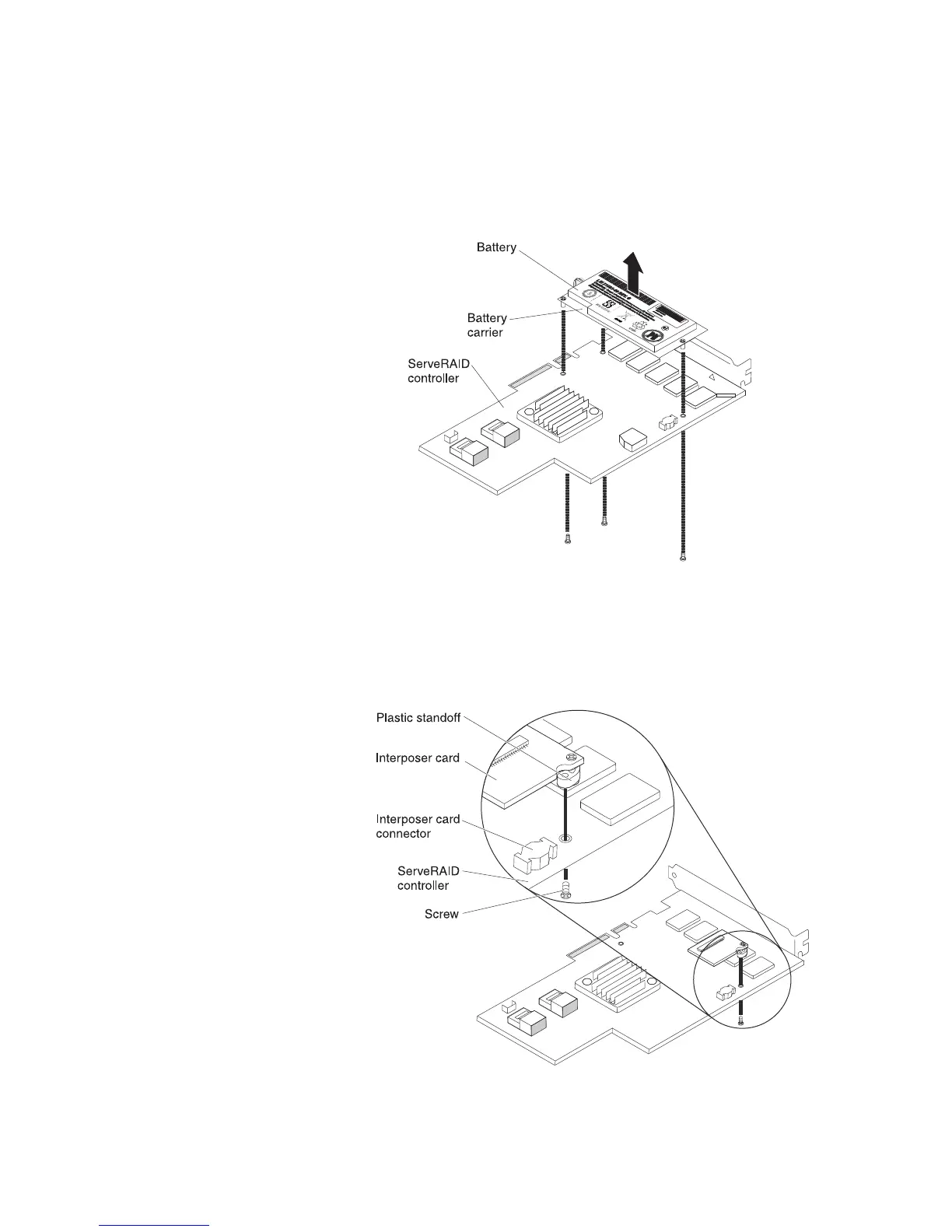

6. If a battery and battery carrier are attached to the SAS controller, disconnect
the battery carrier cable from the battery and remove the three screws that
secure the battery carrier to the ServeRAID controller. Set the battery and
battery carrier aside.
Note: The illustrations in this document might differ slightly from your
hardware.
7. Install the interposer card on the interposer card connector on the ServeRAID
controller:
a. Remove the interposer card and the loose screw from the bag.
b. Rotate the standoff so that it aligns with the hole in the ServeRAID
controller, and position the interposer card connector over the ServeRAID
controller connector.
c. Press the interposer card down onto the interposer card connector so that
the interposer card is secured.
Chapter 2. Installing optional devices 127

IBM System x3650 M3 4255 Specifications

General

Form Factor	2U Rack
Chipset	Intel 5520
Max Processors	2
Processor	Intel Xeon 5600 series
Memory	Up to 192GB DDR3
Network Interface	Dual-port Gigabit Ethernet
Hard Drive Bays	Up to 16 x 2.5" or 6 x 3.5"
RAID Support	RAID 0, 1, 10
Memory Slots	18 DIMM slots
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
