System board
Chassis
Ethernet ports
Rubber
stopper
Adapter
Attention: Make sure the port connectors on the adapter are aligned
properly with the chassis on the rear of the server. An incorrectly seated
adapter might cause damage to the system board or the adapter.
11. Slide the port connectors on the adapter into the port openings on the chassis;
then, press the adapter firmly until the two standoffs engage the adapter. Make
sure the adapter is securely seated on the connector on the system board.
Make sure the port connectors on the adapter do not set on the rubber

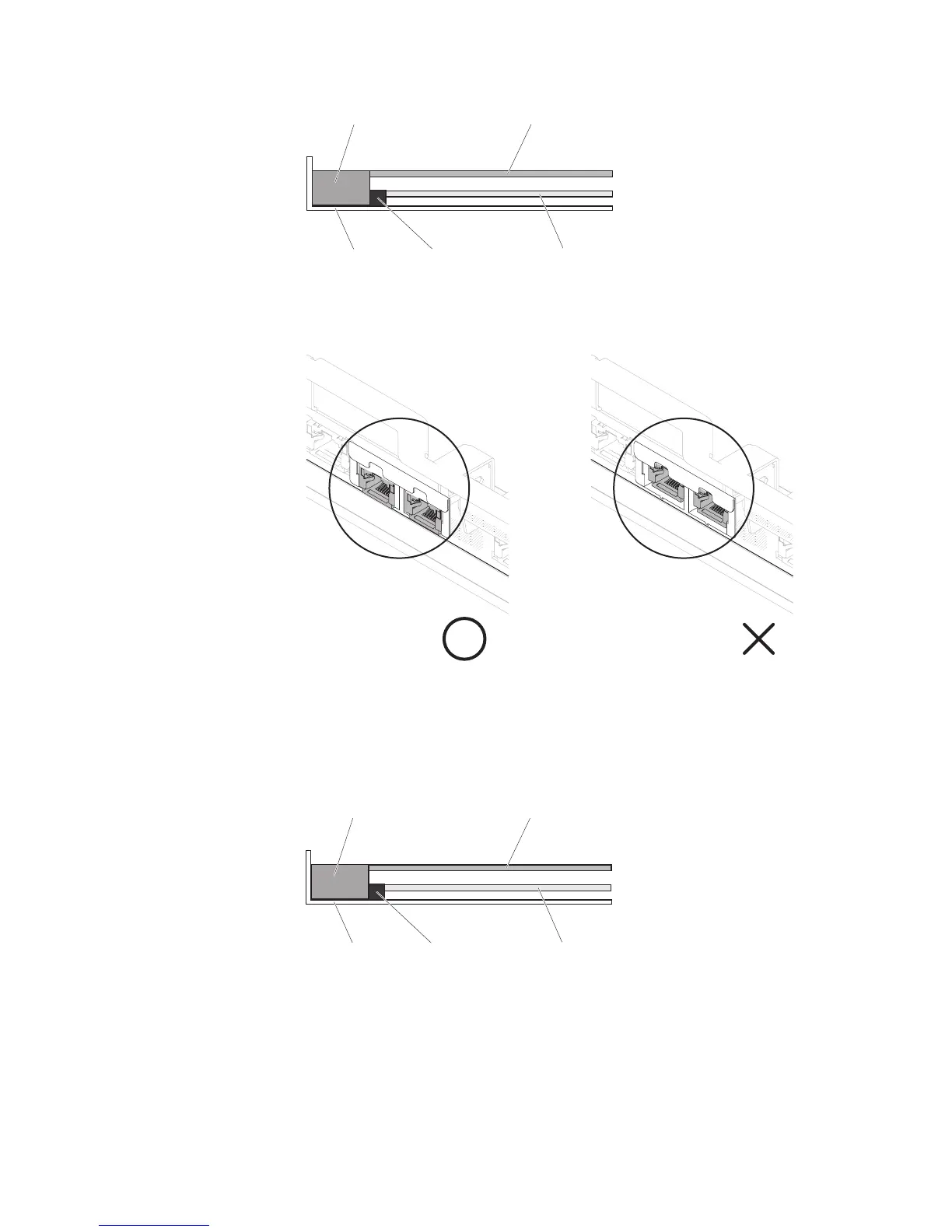

stopper. The following illustration shows the side view of the adapter in the
server.
System board
Chassis
Ethernet ports
Rubber
stopper
Adapter
Attention: Make sure the port connectors on the adapter are aligned
properly with the chassis on the rear of the server. An incorrectly seated
adapter might cause damage to the system board or the adapter.
Chapter 2. Installing optional devices 137
