IBM System x3650 M3 4255 User Manual

For information about the type of hard disk drive that the server supports and other
information that you must consider when installing a hard disk drive, see the
Installation and User’s Guide on the IBM Documentation CD.
Important: Do not install a SCSI hard disk drive in this server.
To install a drive in a simple-swap bay, complete the following steps.
Attention: To maintain proper system cooling, do not operate the server for more
than 10 minutes without either a drive or a filler panel installed in each bay.
1. Remove the drive filler panel from the front of the server.

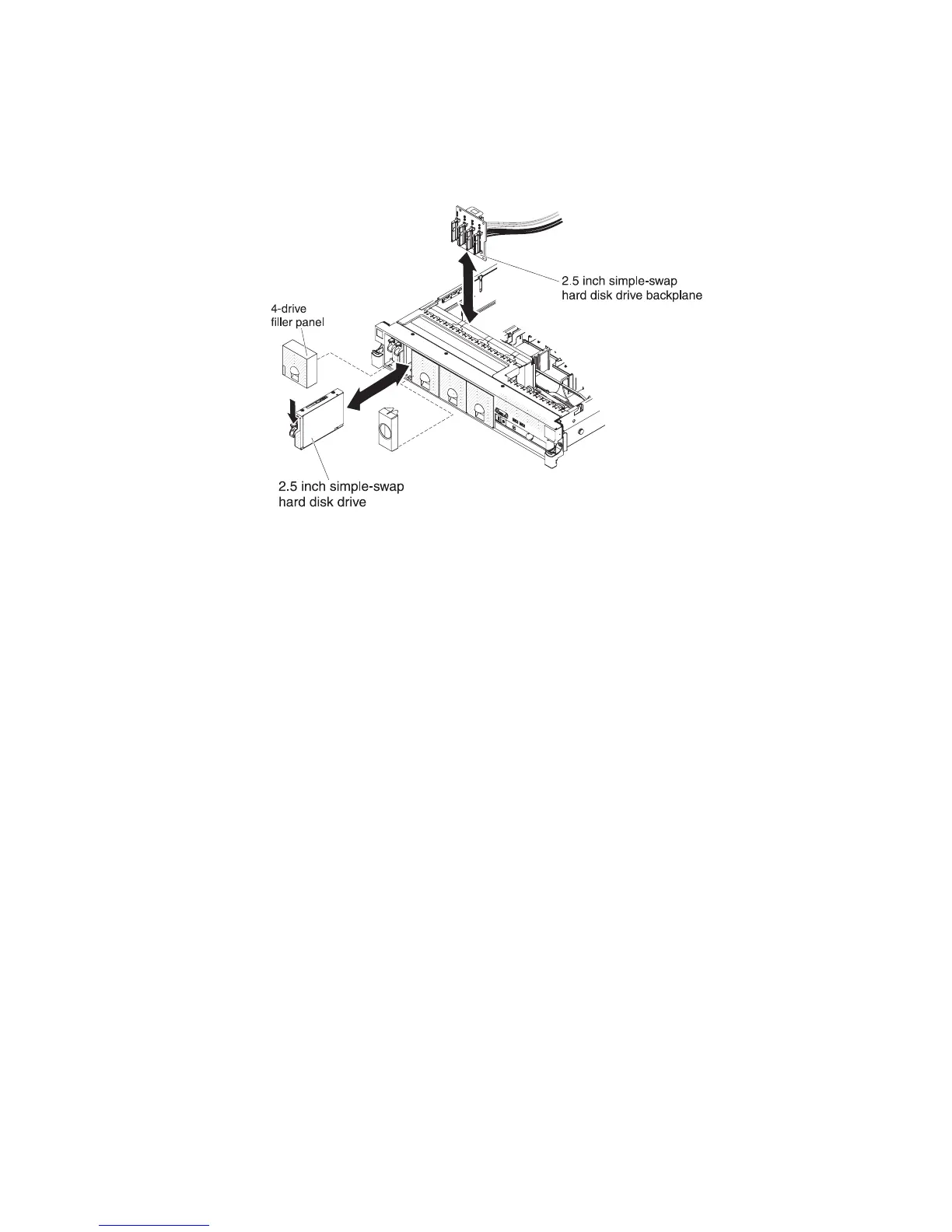

2. Orient the drive as shown in the illustration.
3. Align the drive assembly with the guide rails in the bay.
4. Gently push the drive assembly into the bay until the drive stops.
Note: You might have to reconfigure the disk arrays after you install hard disk
drives. See the RAID documentation on the IBM ServeRAID Support CD for
information about RAID controllers.
Chapter 2. Installing optional devices 61

IBM System x3650 M3 4255 Specifications

General

Form Factor	2U Rack
Chipset	Intel 5520
Max Processors	2
Processor	Intel Xeon 5600 series
Memory	Up to 192GB DDR3
Network Interface	Dual-port Gigabit Ethernet
Hard Drive Bays	Up to 16 x 2.5" or 6 x 3.5"
RAID Support	RAID 0, 1, 10
Memory Slots	18 DIMM slots
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
