19. If a battery and battery carrier are attached to the SAS controller that you
removed in step 8, disconnect the battery carrier cable from the battery and
remove the three screws that secure the battery carrier to the SAS controller.
Set the battery and battery carrier aside.
Note: The illustrations in this document might differ slightly from your
hardware.

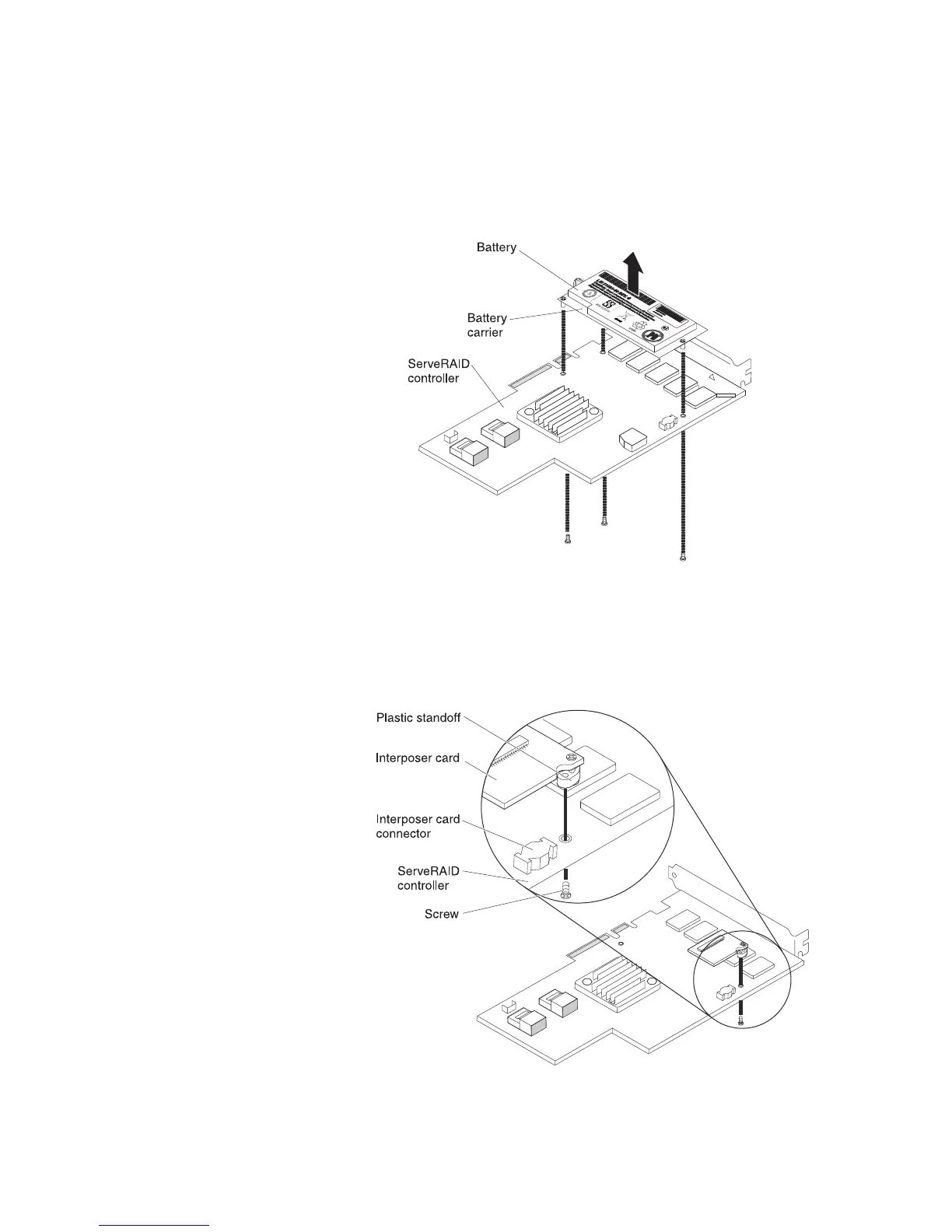

20. Install the interposer card that comes with the option kit on the interposer card
connector on the SAS controller:
a. Remove the interposer card and the loose screw from the bag.
b. Rotate the standoff so that it aligns with the hole in the ServeRAID
controller, and position the interposer card connector over the SAS
controller connector.
c. Press the interposer card down onto the interposer card connector so that
the interposer card is secured.
Chapter 2. Installing optional devices 75

IBM System x3650 M3 4255 Specifications

General

Form Factor	2U Rack
Chipset	Intel 5520
Max Processors	2
Processor	Intel Xeon 5600 series
Memory	Up to 192GB DDR3
Network Interface	Dual-port Gigabit Ethernet
Hard Drive Bays	Up to 16 x 2.5" or 6 x 3.5"
RAID Support	RAID 0, 1, 10
Memory Slots	18 DIMM slots
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
