Installation
notice
for
the
model
with
the
wireless
LAN
feature
Some
models
have
cables
for
the
wireless
LAN
antenna.
After
you
attach
the
LCD
assembly
,

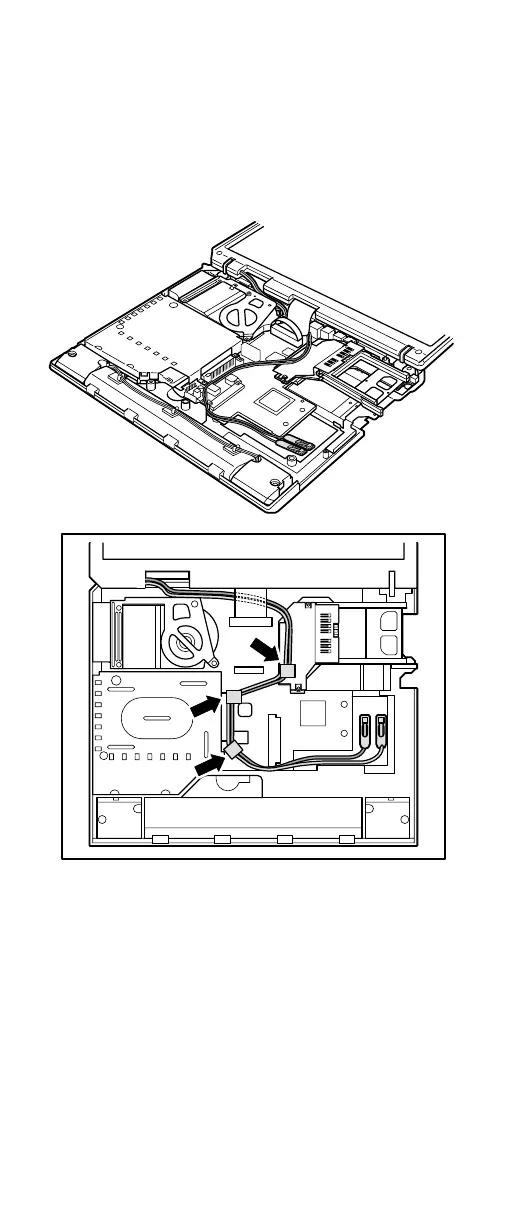

route
the
antenna
cables
as
shown
in
the
following
figure,
and
secure
the
cables
with
new
insulation
tapes.
Removing
and
replacing
a
FRU
104
ThinkPad
A30,
A30p
(MT
2652/2653/2654)
109
111
