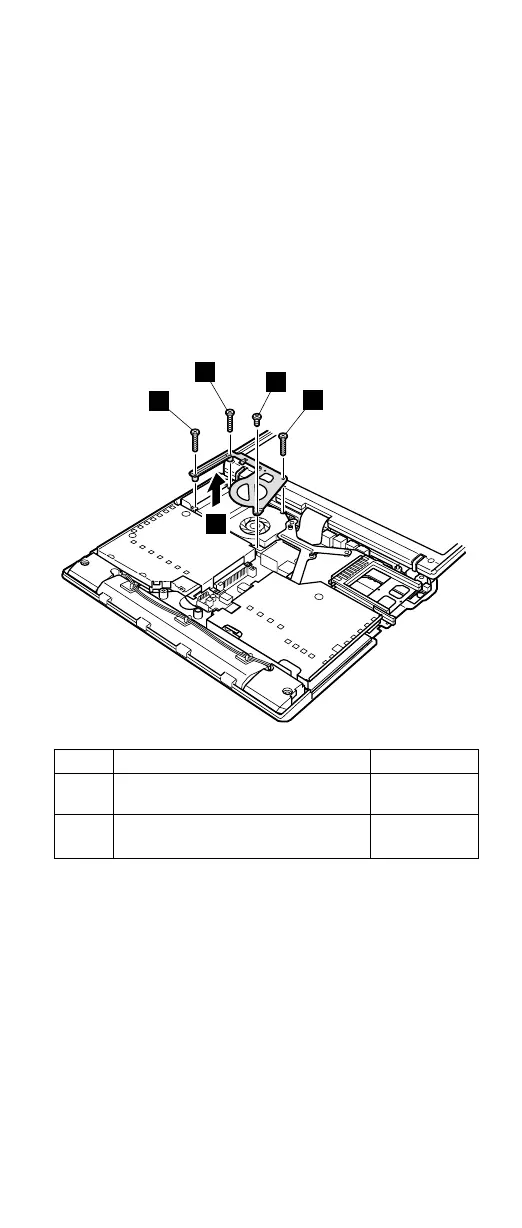

1130 Fan assembly
For access, remove these FRUs, in order:
v “1010 Battery pack” on page 59
v “1030 Communication daughter card (CDC)” on page 63
v “1040 Backup battery” on page 70
v “1060 Hard-disk drive” on page 72
v “1070 Ultrabay Plus device” on page 74
v “1080 Ultrabay 2000 device” on page 75
v “1090 Keyboard” on page 76
v “1100 Keyboard CRU insulator” on page 80
v “1110 Keyboard bezel” on page 81
v “1120 Hinge cover” on page 86
2
2
2
1
3
(a)
(b)
(c)
Step Screw (quantity) Torque
1 M2.5 × 4.8 mm, nylon-coated (1) 0.392 Nm
(4 kgfcm)
2 M2 × 15 mm, nylon-coated (3) 0.245 Nm
(2.5 kgfcm)
When installing: When securing the screws, do as
follows:
1. Secure the screw 1 temporarily.
2. Secure the screws 2 in order of (a), (b), and (c).
3. Tighten the screw 1 to secure the bracket and the
fan assembly firmly.
(continued)
Removing and replacing a FRU
ThinkPad A30, A30p 87
