1170 Sub card for PC Card slot
For access, remove these FRUs, in order:
v “1010 Battery pack” on page 59
v “1030 Communication daughter card (CDC)” on page 63
v “1040 Backup battery” on page 70
v “1060 Hard-disk drive” on page 72
v “1070 Ultrabay Plus device” on page 74
v “1080 Ultrabay 2000 device” on page 75
v “1090 Keyboard” on page 76
v “1100 Keyboard CRU insulator” on page 80
v “1110 Keyboard bezel” on page 81
v “1150 Ultrabay Plus slot” on page 91
1

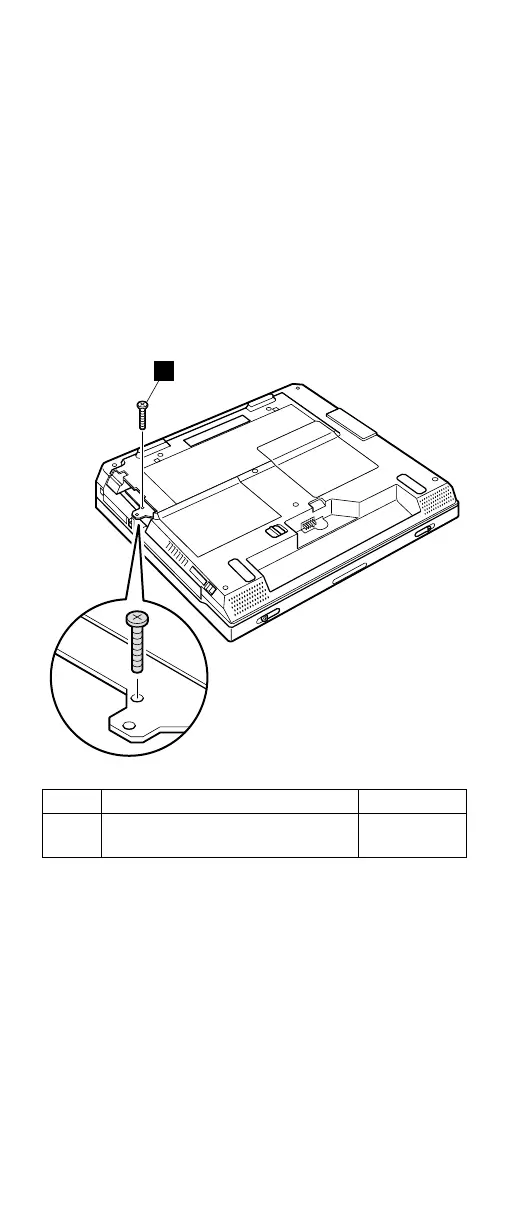

Step Screw (quantity) Torque
1 M2 × 9 mm, nylon-coated (1) 0.245 Nm
(2.5 kgfcm)
(continued)
Removing and replacing a FRU
98 ThinkPad A30, A30p (MT 2652/2653/2654)
