2020 Inverter card
For access, remove these FRUs, in order:
v “1010 Battery pack” on page 59
v “1020 Mini PCI adapter” on page 60
v “1030 Communication daughter card (CDC)” on page 63
v “1040 Backup battery” on page 70
v “1060 Hard-disk drive” on page 72
v “1070 Ultrabay Plus device” on page 74
v “1080 Ultrabay 2000 device” on page 75
v “1090 Keyboard” on page 76
v “1100 Keyboard CRU insulator” on page 80
v “1110 Keyboard bezel” on page 81
v “1120 Hinge cover” on page 86
v “1150 Ultrabay Plus slot” on page 91
v “1190 LCD assembly” on page 101
v “2010 Front bezel” on page 115

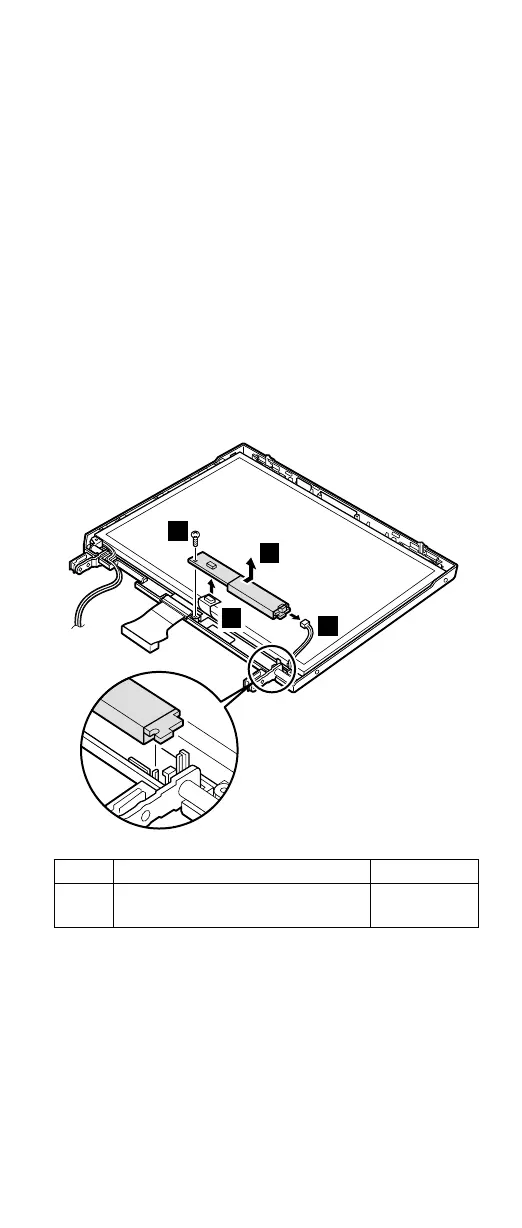

1
2
4
3
Step Screw (quantity) Torque
1 M2.5 × 4.8 mm, nylon-coated (4) 0.392 Nm
(4 kgfcm)
When installing: Make sure that both of the connectors
3 and 4 are firmly attached.
Removing and replacing a FRU
ThinkPad A30, A30p 117
