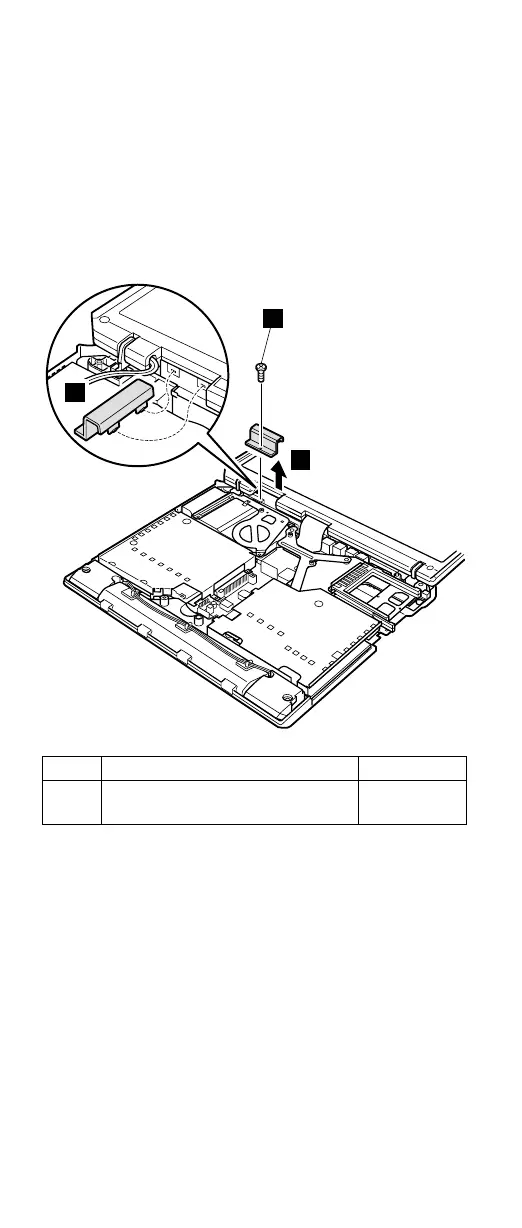

1120 Hinge cover
For access, remove these FRUs, in order:
v “1010 Battery pack” on page 59
v “1070 Ultrabay Plus device” on page 74
v “1080 Ultrabay 2000 device” on page 75
v “1090 Keyboard” on page 76
v “1100 Keyboard CRU insulator” on page 80
v “1110 Keyboard bezel” on page 81
a
1
2
Step Screw (quantity) Torque
1 M2.5 × 4.8 mm, nylon-coated (2) 0.392 Nm
(4 kgfcm)
When installing: Attach the hinge cover, aligning the two
projections on the rear side with the two
small square holes of the base cover.
(a)
Removing and replacing a FRU
86 ThinkPad A30, A30p (MT 2652/2653/2654)
