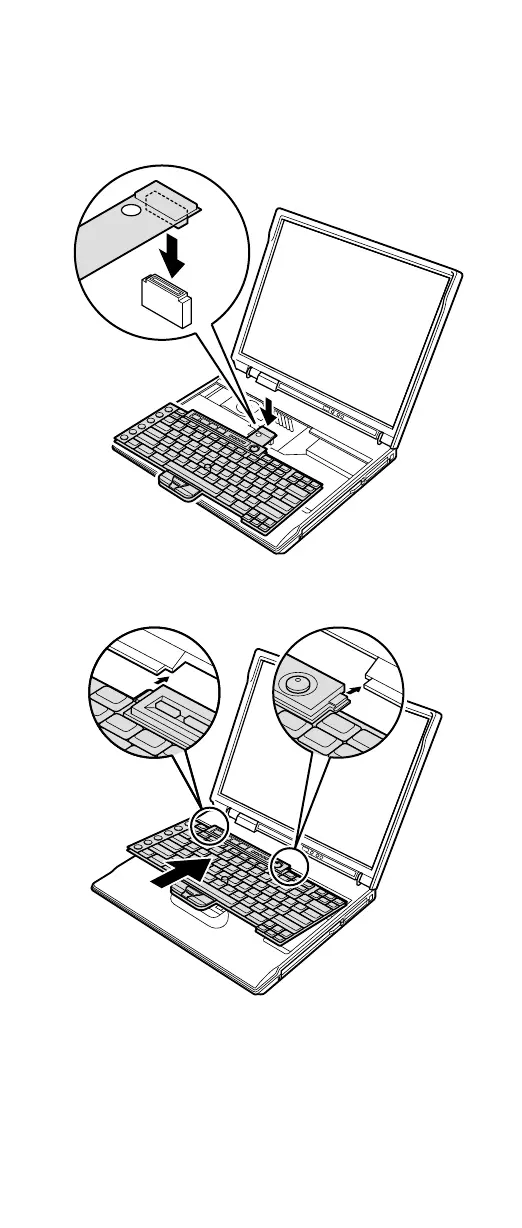

When installing: Install the new keyboard, following the
directions below.
1. Attach the connector.
2. Make sure that the keyboard edges, shown in the
figure as (A) and (B), are under the frame.
(A)
(B)
(continued)
Removing and replacing a FRU
78 ThinkPad A30, A30p (MT 2652/2653/2654)
