IBM ThinkPad T40 series Hardware Maintenance Manual

1170 CPU
For access, remove these FRUs in order:
v “1010 Battery pack” on page 68
v “1030 Hard disk drive” on page 71
v “1050 Keyboard” on page 75
v “1090 Palm rest” on page 84
v “1150 Keyboard bezel” on page 96
v “1160 LCD assembly” on page 98
v “1110 Fan assembly” on page 89

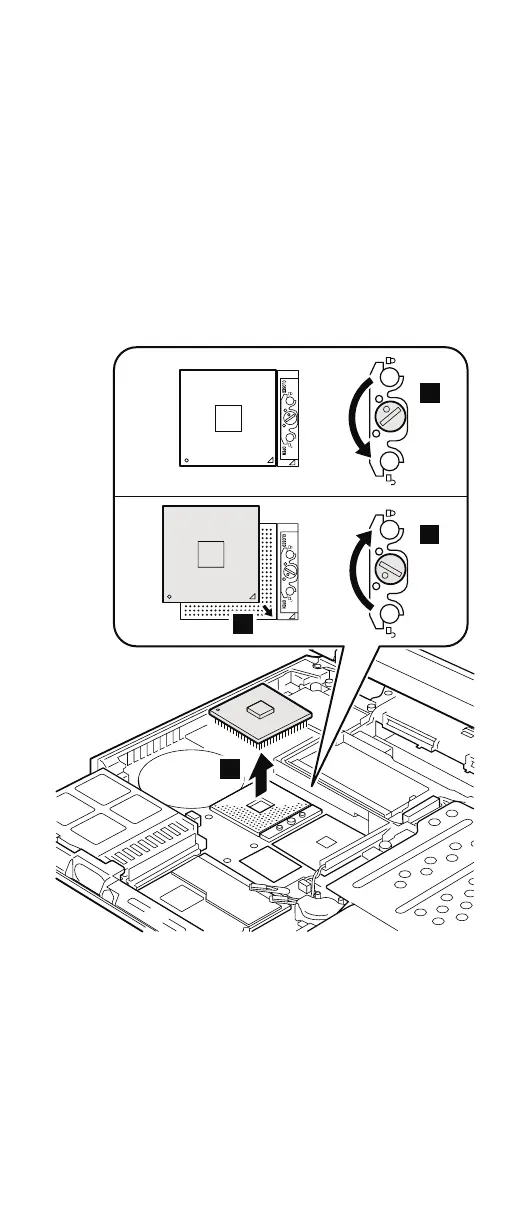

Rotate the head of the screw in the direction shown by
arrow 1 to release the lock; then remove the CPU 2.
2
1
b
a
When installing: Place the CPU on the CPU socket a,
and then rotate the head of the screw in
the direction shown by arrow b to
secure the CPU.
Removing and replacing a FRU
ThinkPad T40, T40p, T41 Series 103

IBM ThinkPad T40 series Specifications

General

Processor	Intel Pentium M (1.3 GHz - 1.7 GHz)
Chipset	Intel 855PM
Hard Drive Interface	ATA-100
Modem	56K V.92
Release Year	2003
RAM	256 MB - 2 GB (DDR SDRAM)
Storage	30 GB - 80 GB (HDD)
Display	14.1"
Graphics	ATI Mobility Radeon 7500 or 9000
Optical Drive	DVD-ROM/CD-RW Combo
Operating System	Windows XP Professional
Weight	2.2 kg (4.9 lbs)
Battery	Li-Ion
Wireless	Intel PRO/Wireless 2100
Ethernet	10/100 Mbps
Ports	2 x USB 2.0, VGA, RJ-11, RJ-45, Audio In/Out
Dimensions	311 mm x 255 mm x 26.6 mm (12.24" x 10.04" x 1.05")
