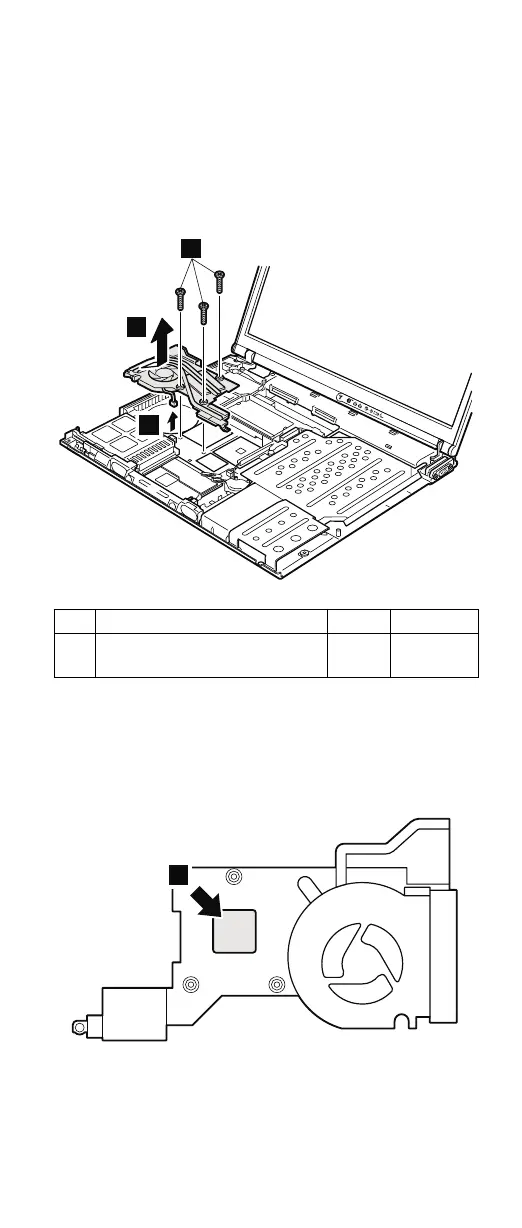

1110 Fan assembly
For access, remove these FRUs in order:
v “1010 Battery pack” on page 68
v “1030 Hard disk drive” on page 71
v “1050 Keyboard” on page 75
v “1090 Palm rest” on page 84
3
2
1
Step Screw (quantity) Color Torque
1 M2 × 10 mm, flat-head,
nylon-coated (3)
Black 0.245 Nm
(2.5 kgfcm)
When installing:
1. Make sure that the connector 3 is firmly attached.
2. Apply thermal grease on the part marked a in this
figure.
a
(Bottom view of the fan assembly)
Removing and replacing a FRU
ThinkPad T40, T40p, T41 Series 89
